Würth Elektronik 632121300001 — USB / HDMI Cable Assemblies

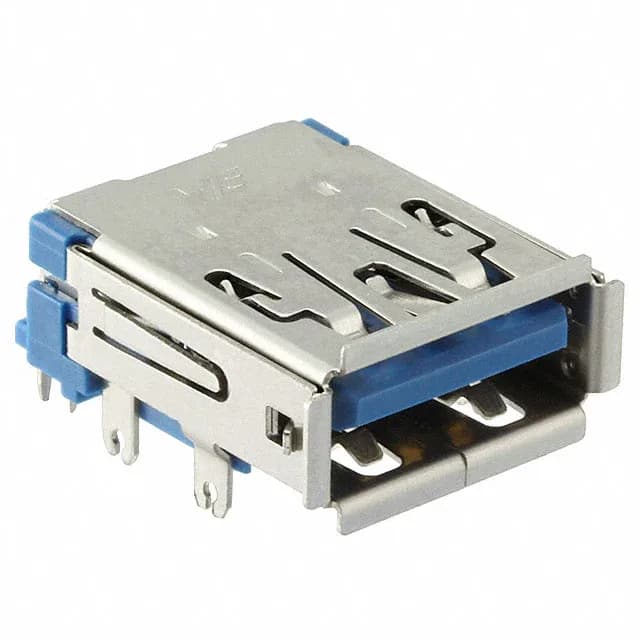

Würth WR-COM 632121300001 USB-A Receptacle, 11 Pos, 5 A

MPN632121300001
Active

Würth Elektronik WR-COM USB-A receptacle, order code 632121300001, 11 contacts, single port, USB 3.2 Gen 1, 5 A, 20 VDC, gold-plated contacts, through-hole right-angle, solder termination, unshielded.

$4.05Ref. price · indicative, final on quote
Würth Elektronik 632121300001 datasheet (PDF)
RoHSROHS3 Compliant
SeriesWR-COM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

632121300001 specifications
ParameterValue
SeriesWR-COM
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated20VDC
Current rating5A
Positions11
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
ShieldingUnshielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

USB-A receptacle with 5000-cycle contact system

The 632121300001 is the 11-contact USB-A receptacle in Würth Elektronik's WR-COM series, supporting USB 3.2 Gen 1 (5 Gbps) signalling. The UL94 V-0-rated blue insulation and through-hole right-angle mounting suit panel-edge and horizontal board layouts.

WR-COM USB port selection — Type-A vs Type-C

Within the WR-COM USB series, the 632121300001 (USB-A, 11 contacts, 5000 cycles) differs from the USB-C receptacles 632723300011, 632723100011, and 632723300021 (24 contacts, 10000 cycles, USB 3.2 Gen 2). The pitch and footprint are not shared between the Type-A and Type-C form factors, so the choice is driven by the mating cable standard and the required data rate.

Frequently asked questions

How do I get current pricing and availability for 632121300001?

The 632121300001 is an active Würth Elektronik WR-COM part.

Will the 632121300001 drop into a panel specified for 632723300011?

No. The 632121300001 is a USB-A receptacle; the 632723300011 is a USB-C receptacle with a different contact count (11 vs 24), form factor, and data-rate specification. The two are not footprint-compatible.
