Mini-B receptacle with 1500-cycle rating
The 65100516121 is the 5-contact mini-B member of Würth Elektronik's WR-COM USB 2.0 receptacle line, rated for 1500 mating cycles with gold-plated contacts.

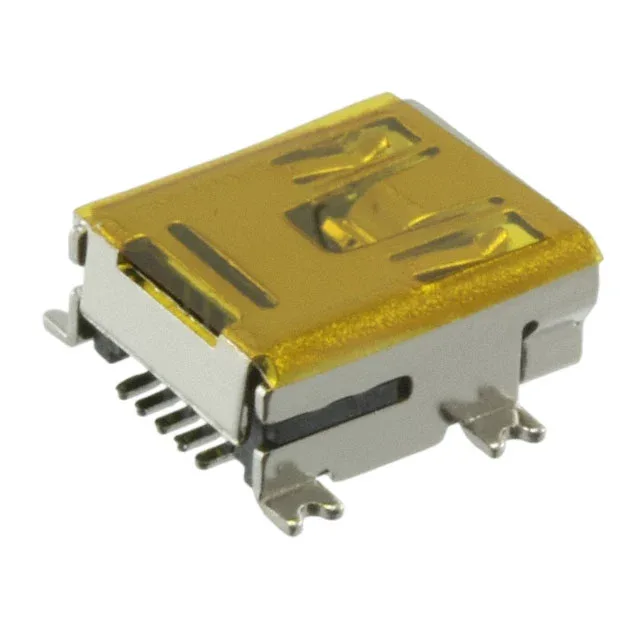

Würth WR-COM 65100516121 USB 2.0 Mini-B Receptacle
MPN65100516121
Active
Würth Elektronik WR-COM USB - mini B receptacle, order code 65100516121, 5 contacts, 1 A, 30 V, USB 2.0, gold-plated contacts, shielded, surface-mount right-angle, solder termination.
$1.41Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-COM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Surface Mount, Right Angle |
| Connector type | USB - mini B |
| Voltage - rated | 30V |
| Current rating | 1A |
| Positions | 5 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | Black |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
Product details
Frequently asked questions
Will the 65100516121 drop into a panel specified around the 651305142821 without rewiring?
No — the 65100516121 is a mini-B receptacle, while the 651305142821 is a mini-AB receptacle. The shell keying differs, so they are not mechanically interchangeable. The board footprint and pinout are the same, but the mating plug must match the receptacle type.
