Würth Elektronik 690357280476
MPN690357280476
Active

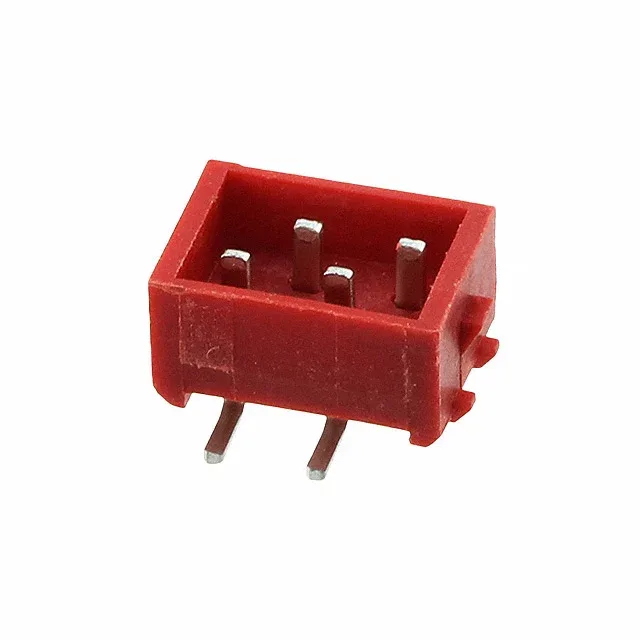

CONN HEADER SMD 4POS 2.54MM
$1.27Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-MM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-MM |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 100V |
| Current rating | 1.5A per Contact |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.142\" (3.60mm) |
| Insulation material | Polyamide (PA6T), Nylon 6T |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Row spacing - mating | 0.059\" (1.50mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
