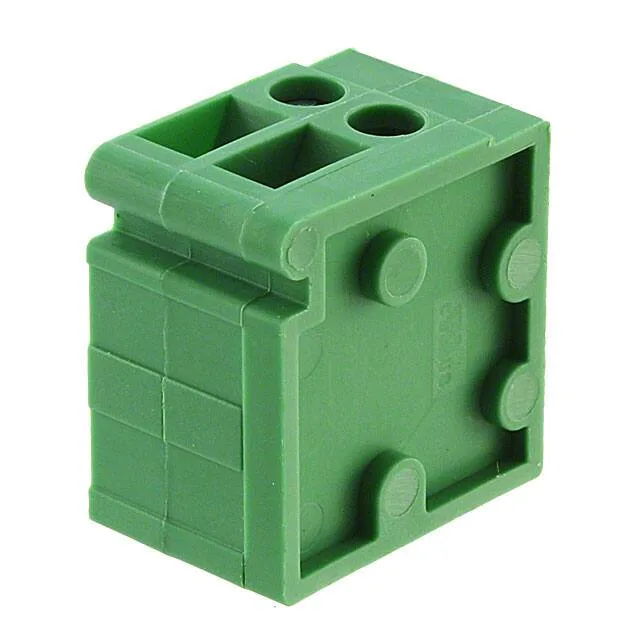

Würth Elektronik 691127700002B
MPN691127700002B
Active
TERM BLK 2POS TOP ENTRY 5MM PCB
$2.64Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 127B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 127B |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 20 A |
| Wire gauge | 12-30 AWG |
| Wire termination | Screw - Pressure Clip |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel - Zinc Plated |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass |
| Pitch | 0.197\" (5.00mm) |
| Package | Tray |
| Torque - screw | 0.45 Nm (4.0 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 2 |
