Würth Elektronik 691132700006
MPN691132700006
Active

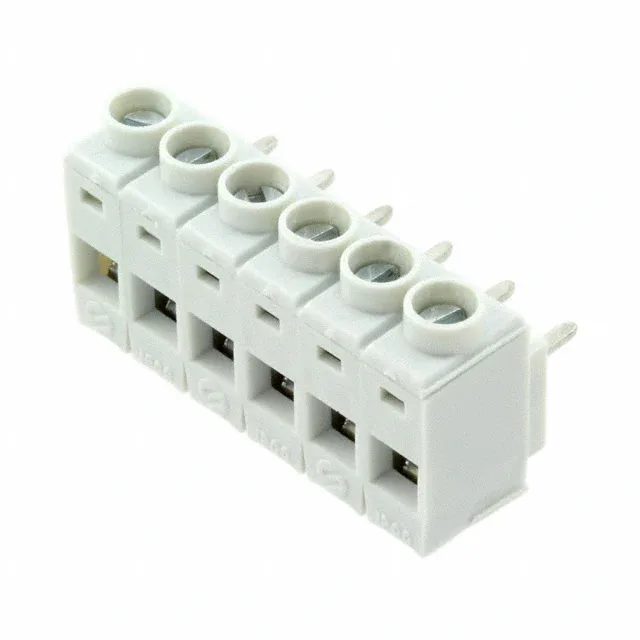

TERM BLK 6POS TOP ENTRY 5MM PCB
$4.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 132
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 132 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 16 A |
| Wire gauge | 12-24 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 130°C |
| Color | Gray |
| Housing material | Polycarbonate (PC) |
| Clamp material - plating | Steel - Zinc Plated |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Tray |
| Screw thread | M2.5 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 6 |
