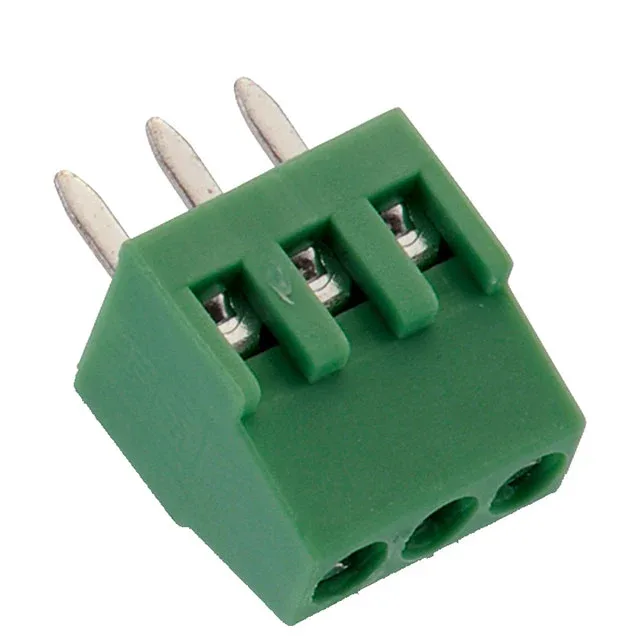

Würth Elektronik 691210910003
MPN691210910003
Active
2.54 MM TERMINAL BLOCK, HORIZONT
$2.26Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 2109
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 2109 |
| Mounting | Through Hole |
| Voltage | 150 V |
| Current | 6 A |
| Wire gauge | 18-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Brass |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Brass - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Screw thread | M1.6 |
| Torque - screw | 0.15 Nm (1.3 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 3 |
