Würth Elektronik 691213800002
MPN691213800002
Active

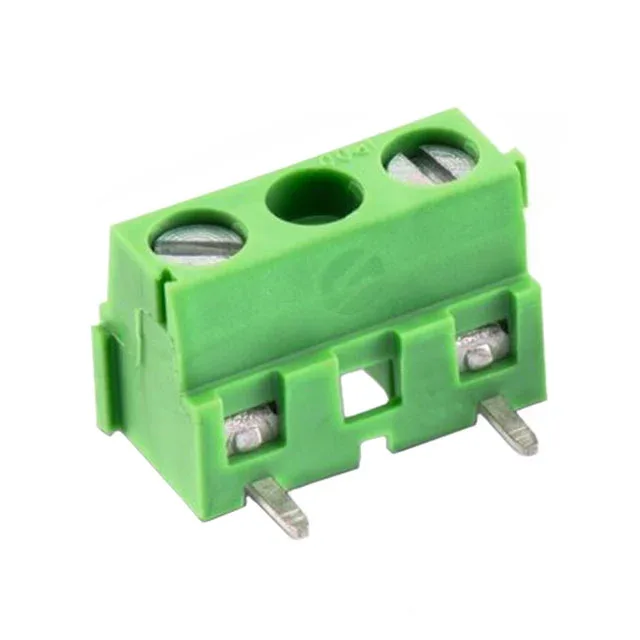

TERM BLK 2POS TOP ENTRY 10MM PCB
$1.28Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 2138
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 2138 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 14 A |
| Wire gauge | 14-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 120°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Copper Alloy |
| Screw material - plating | Zinc Plated |
| Contact material - plating | Copper Alloy - Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.394\" (10.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 2 |
