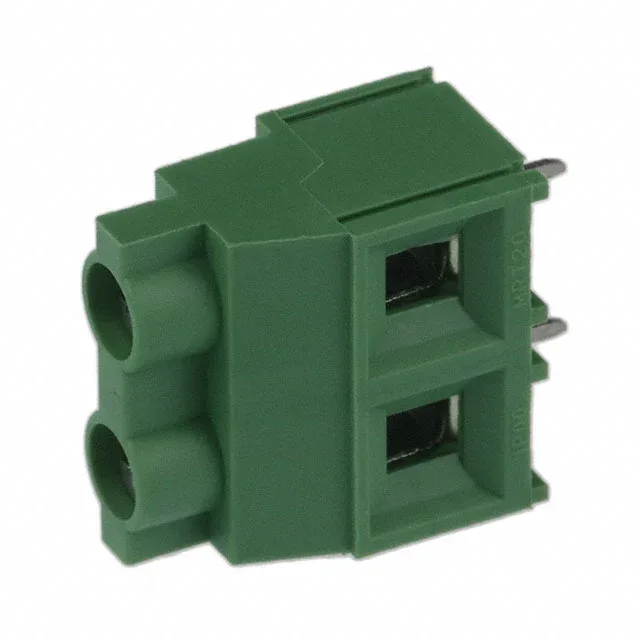

Würth Elektronik 691250910002
MPN691250910002
Active
9.52 MM TERMINAL BLOCK, HORIZONT
$1.74Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 2509
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 2509 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 24 A |
| Wire gauge | 10-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -30°C ~ 120°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Copper Alloy |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Steel - Zinc Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.375\" (9.53mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Screw thread | M3 |
| Torque - screw | 0.56 Nm (5.0 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
