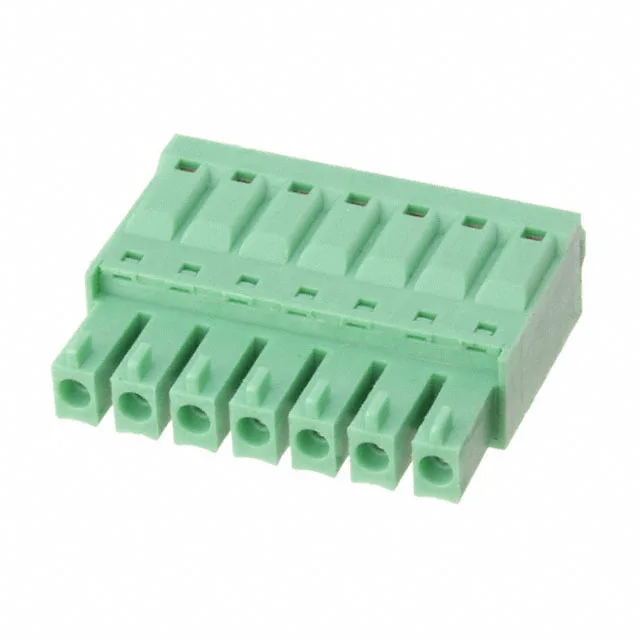

Würth Elektronik 691304300007
MPN691304300007
Active
WR-TBL SERIES 3043_3.81MM_SCREWL
$9.89Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 3043
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | WR-TBL Series 3043 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.21-1.31mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.307\" (7.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screwless |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
