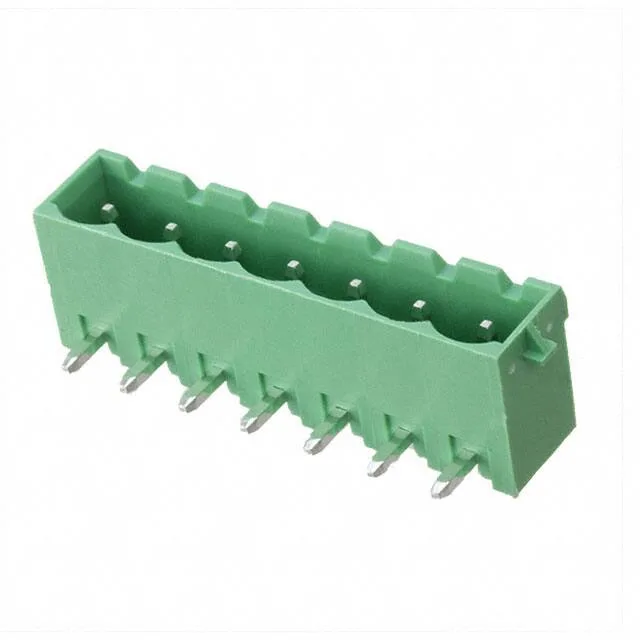

Würth Elektronik 691305540007
MPN691305540007
Active
WR-TBL SERIES 3055_5.08 MM_PCB H
$3.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 3055
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | WR-TBL Series 3055 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.338\" (8.59mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Locking Ramp |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.157\" (4.00mm) |
| Positions | 7 |
| Positions per level | 7 |
| Contact mating finish | Tin |
