Würth Elektronik 691312710004
MPN691312710004
Active

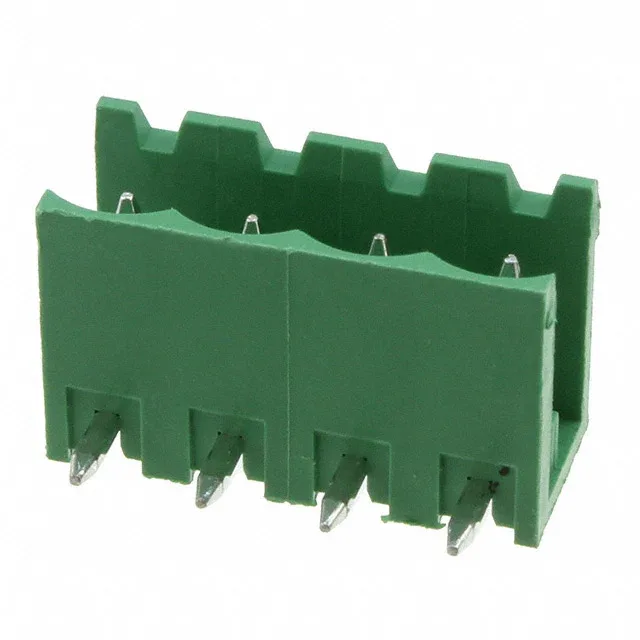

TERM BLOCK HDR 4POS 90DEG 5MM
$0.88Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 3127
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | WR-TBL Series 3127 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 20 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 0.335\" (8.51mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.157\" (4.00mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
