Würth Elektronik 691338500004
MPN691338500004
Active

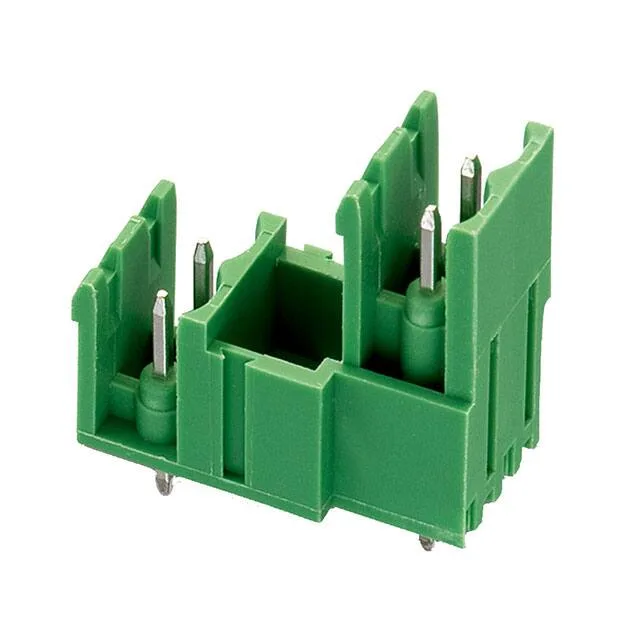

5.08 MM TERMINAL BLOCK HEADER, D
$2.26Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 3385
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Series | WR-TBL Series 3385 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.866\" (22.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.154\" (3.90mm) |
| Positions | 4 |
| Positions per level | 2 |
| Contact mating finish | Tin |
