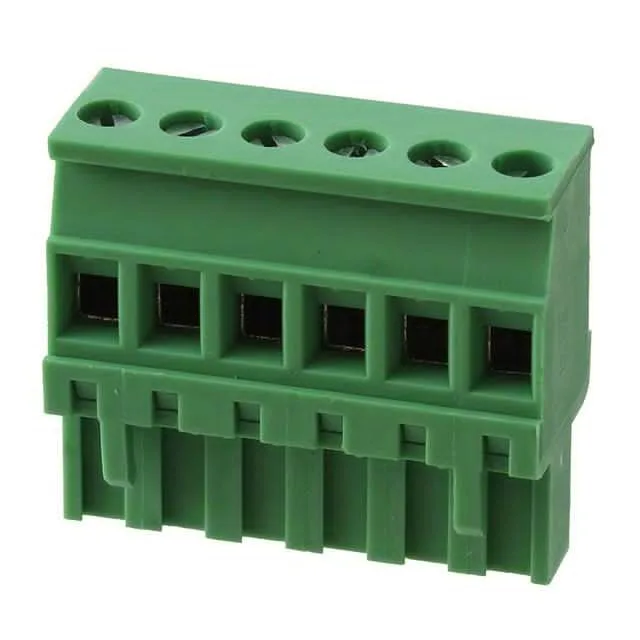

TERM BLOCK PLUG 6POS 5MM
$3.81Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | WR-TBL Series 3517 |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Plug wire entry | 90° |
| Wire strip length | 6-7mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 0.2-3mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 1.024\" (26.01mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 6 |
| Positions per level | 6 |
Sourcing this connector
Würth Elektronik 691351700006 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Würth Elektronik and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
