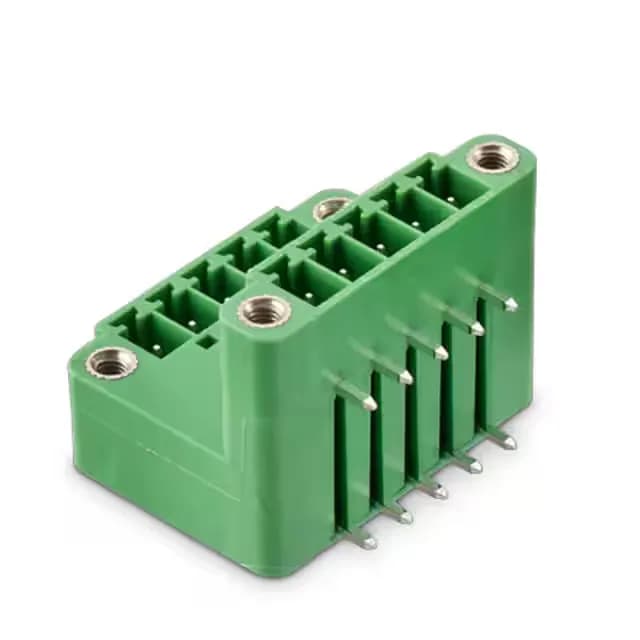

Würth Elektronik 691357300010B
MPN691357300010B
Active
$6.5270Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | WR-TBL Series 357B |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Operating temperature | -40°C~105°C |
| Color | Green |
| Contact material | Brass |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.862\" (21.89mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 2 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.134\" (3.40mm) |
| Positions | 10 |
| Positions per level | 5 |
| Contact mating finish | Tin |
