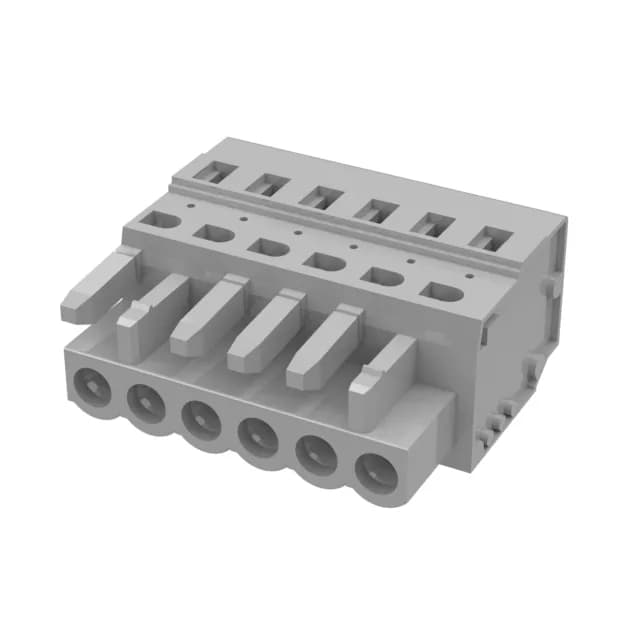

Würth Elektronik 691369700006B
MPN691369700006B
Active
$5.8840Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | WR-TBL Series 369B |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 8-9mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-3.31mm² |
| Operating temperature | -40°C~115°C |
| Color | Gray |
| Contact material | Phosphor Bronze |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.575\" (14.60mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
