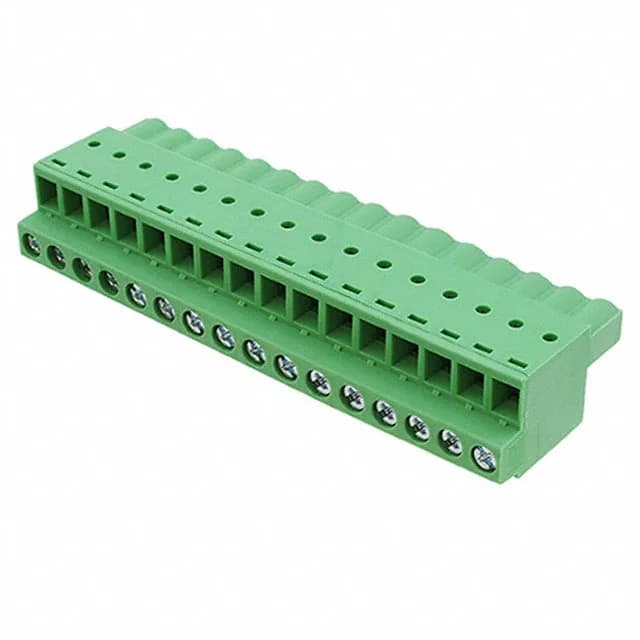

Würth Elektronik 691373500016B
MPN691373500016B
Active
$9.0290Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | WR-TBL Series 373B |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 12-24 AWG |
| Wire gauge or range - mm2 | 0.2-3.3mm² |
| Operating temperature | -40°C~105°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Tray |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M2.6 |
| Torque - screw | 0.45 Nm (4.0 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 16 |
| Positions per level | 16 |
