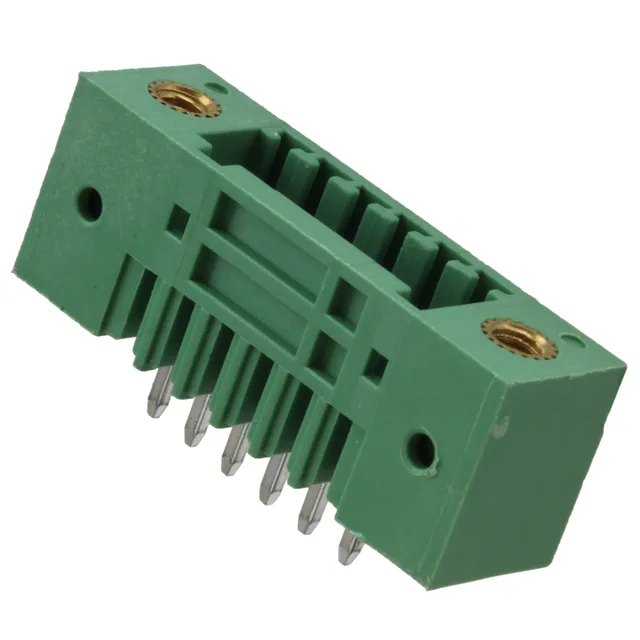

Würth Elektronik 691382030006
MPN691382030006
Active
TERM BLOCK HDR 6POS VERT 2.5MM
$3.3Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 382
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | WR-TBL Series 382 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 12 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.398\" (10.11mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.098\" (2.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
