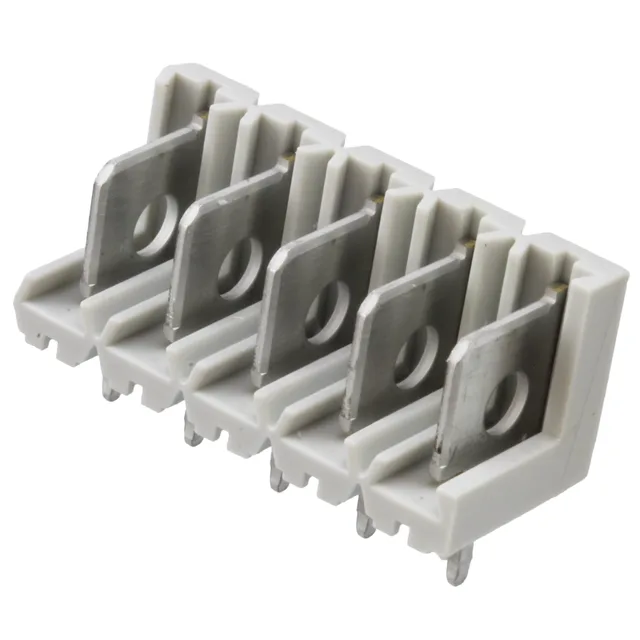

Würth Elektronik 691386700005
MPN691386700005
Active
TERM BLOCK HDR 5POS VERT 5MM
$1.48Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 386
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Blade Pins |
| Series | WR-TBL Series 386 |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 14 A |
| Current - IEC | 16A |
| Operating temperature | -30°C ~ 130°C |
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polycarbonate (PC) |
| Insulation height | 0.429\" (10.90mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Tray |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.161\" (4.10mm) |
| Positions | 5 |
| Positions per level | 5 |
