Würth Elektronik 691403900006B
MPN691403900006B
Active

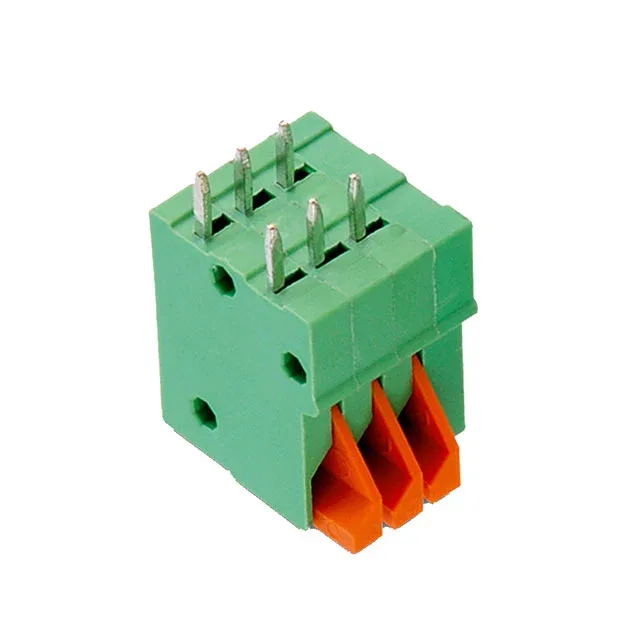

2.54 MM TERMINAL BLOCK, VERTICAL
$3.07Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 4039B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 4039B |
| Mounting | Through Hole |
| Voltage | 150 V |
| Current | 6 A |
| Wire gauge | 20-26 AWG |
| Wire termination | Screwless |
| Operating temperature | -40°C ~ 115°C |
| Color | Green |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 6 |
