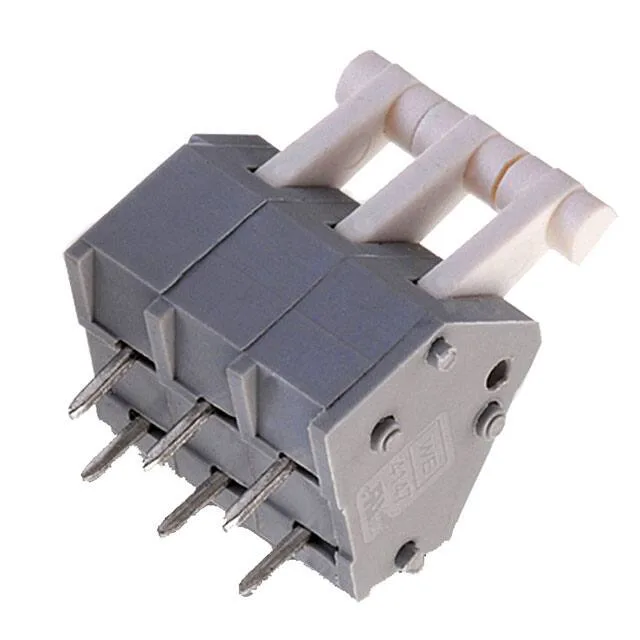

Würth Elektronik 691414720006B
MPN691414720006B
Active
5.00 MM TERMINAL BLOCK, 45 ENTR
$4.05Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 4147
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 4147 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 16 A |
| Wire gauge | 14-28 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -40°C ~ 105°C |
| Color | Gray |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel, Stainless |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 6 |
