Würth Elektronik 691418420003
MPN691418420003
Active

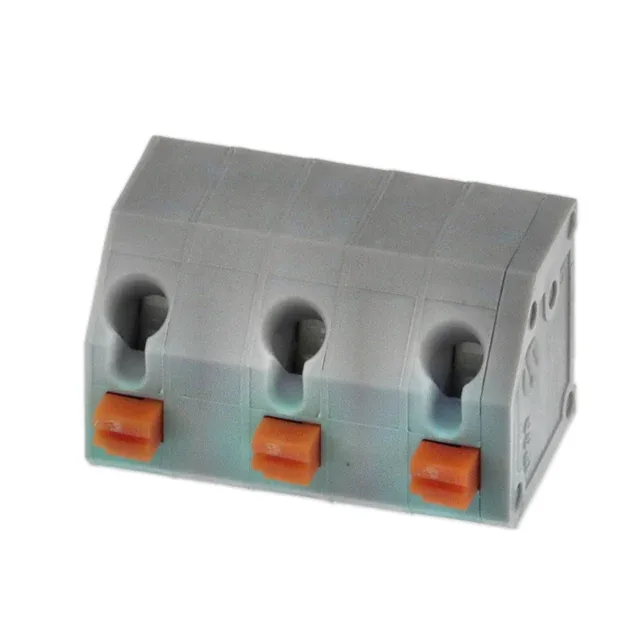

7.62 MM TERMINAL BLOCK, 45 ENTR
$2.23Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 4184
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 4184 |
| Mounting | Through Hole, Kinked Pin |
| Voltage | 300 V |
| Current | 4 A |
| Wire gauge | 16-30 AWG |
| Wire termination | Screwless |
| Operating temperature | -30°C ~ 120°C |
| Color | Gray |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Phosphor Bronze - Tin Plated |
| Contact material - plating | Phosphor Bronze - Tin Plated |
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 3 |
