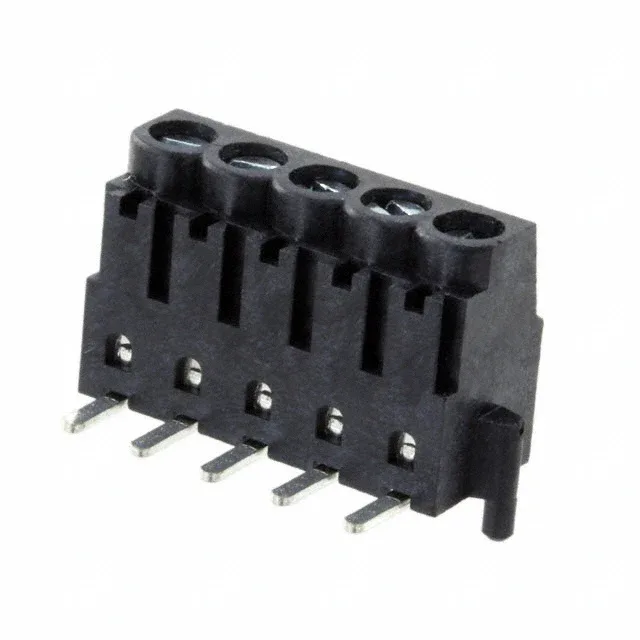

Würth Elektronik 691508110305
MPN691508110305
Active
TERM BLOCK 5POS 3.5MM SMD
$6.83Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 5081
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 5081 |
| Mounting | Surface Mount |
| Voltage | 300 V |
| Current | 10 A |
| Wire gauge | 16-30 AWG |
| Wire termination | Screw - Rising Cage Clamp |
| Operating temperature | -40°C ~ 130°C |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP) |
| Clamp material - plating | Brass - Tin Plated |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Tin |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.138\" (3.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Mounting Flange |
| Screw thread | M2 |
| Torque - screw | 0.2 Nm (1.7 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal and Vertical with Board |
| Positions per level | 5 |
