Würth Elektronik 691709710304
MPN691709710304
Active

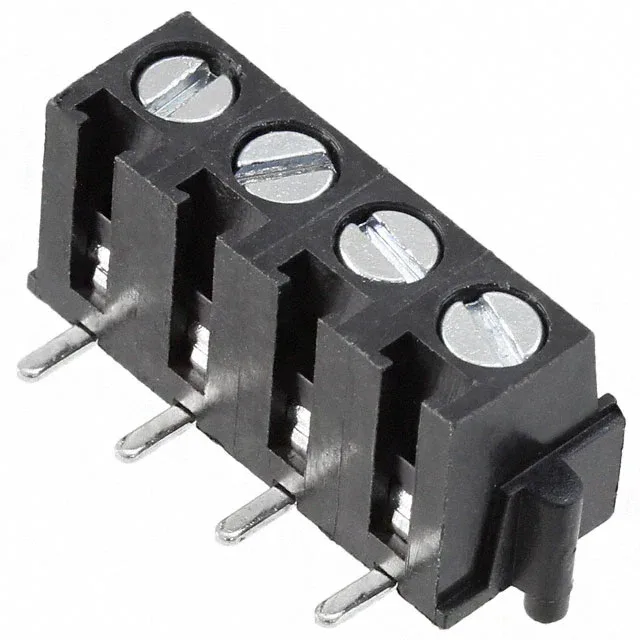

TERM BLK 4POS SIDE ENTRY 5MM SMD
$5.25Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 7097
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 7097 |
| Mounting | Surface Mount |
| Voltage | 300 V |
| Current | 6 A |
| Wire gauge | 14-30 AWG |
| Wire termination | Screw - Leaf Spring, Wire Guard |
| Operating temperature | -40°C ~ 115°C |
| Color | Black |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Clamp material - plating | Steel, Stainless |
| Screw material - plating | Steel - Zinc Plated |
| Contact material - plating | Tin Plated |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.197\" (5.00mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Screw thread | M3 |
| Torque - screw | 0.4 Nm (3.5 Lb-In) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 4 |
