Würth Elektronik 691805010302
MPN691805010302
Active

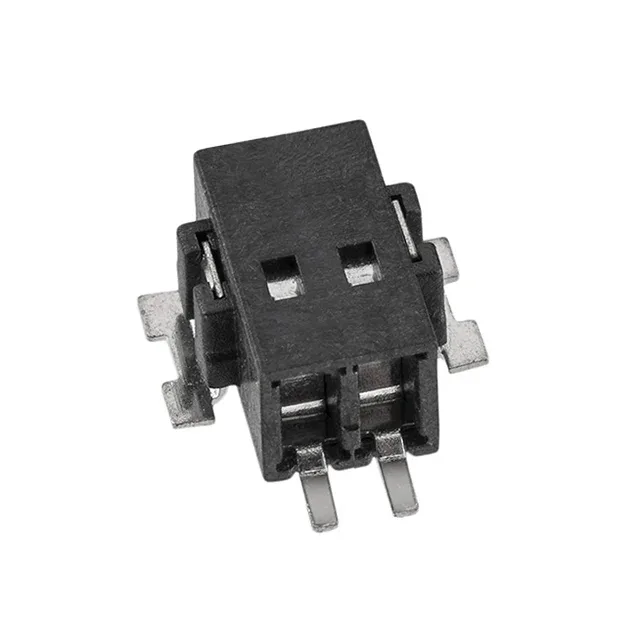

TERM BLK 2POS SIDE ENT 2.5MM SMD
$1.92Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-TBL Series 8050
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-TBL Series 8050 |
| Mounting | Surface Mount |
| Current | 6 A |
| Wire gauge | 20-26 AWG |
| Wire termination | Screwless |
| Operating temperature | -45°C ~ 130°C |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP) |
| Clamp material - plating | Copper Alloy |
| Contact material - plating | Brass - Tin Plated |
| Pitch | 0.098\" (2.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
