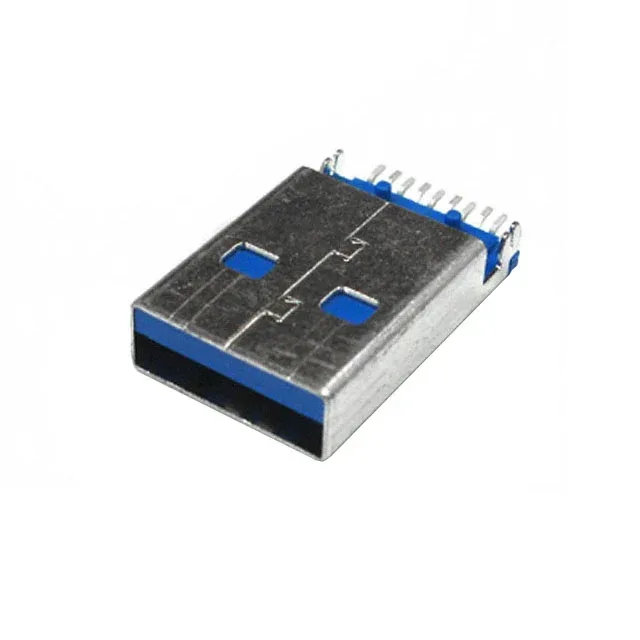

692112030100 — Würth Elektronik product photo
Würth Elektronik

Würth WR-COM 692112030100 USB-A Plug, 9P, SMD RA

MPN692112030100
Active

Würth Elektronik WR-COM USB-A plug, order code 692112030100, 9 contacts, USB 3.2 Gen 1, 30VAC, 0.25A/1.8A, gold-plated contacts, shielded, surface-mount right-angle, solder termination.

$3.2Ref. price · indicative, final on quote
692112030100 datasheet
StockIn Stock (18)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

692112030100 Technical Specifications
ParameterValue
SeriesWR-COM
Mounting typeSurface Mount, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating0.25A, 1.8A
Positions9
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderPlug
PackageTray
FeaturesBoard Guide, Board Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

USB 3.2 Gen 1 plug, 9 contacts, shielded

The 692112030100 is the 9-contact USB-A plug member of Würth Elektronik's WR-COM series, rated for USB 3.2 Gen 1 (5 Gbps) signalling. Gold-plated contacts carry 0.25 A on the signal pair and 1.8 A on the power pair at 30 VAC; the shielded steel shell and board locks hold the mated joint against vibration.

Plug vs receptacle — orientation and gender

Within the WR-COM USB 3.2 Gen 1 family, the 692112030100 is the only plug (male) variant; the 692122030100 and 692121430000 are receptacles (female) with the same 9-contact count, 30 VAC rating, and gold plating. The plug mates with either receptacle — the 692122030100 is a horizontal SMT receptacle, the 692121430000 is a vertical SMT receptacle. Choose the receptacle orientation to match the board-edge or panel-mount layout.
