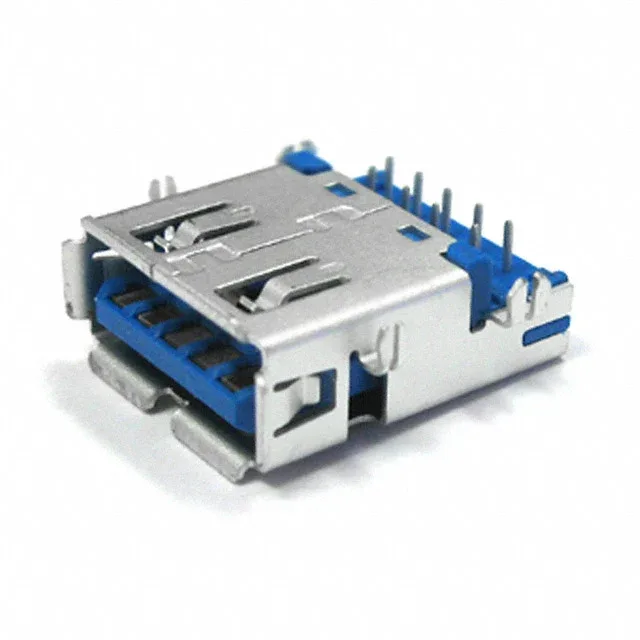

692121230100 — Würth Elektronik product photo
Würth Elektronik

Würth WR-COM 692121230100 USB-A Receptacle, 9 Pos, Shielded

MPN692121230100
Active

Würth Elektronik WR-COM USB-A receptacle, order code 692121230100, 9 contacts, USB 3.2 Gen 1 (Superspeed), shielded, gold-plated contacts, through-hole right-angle, solder termination, 30 VAC, 0.25 A / 1.8 A.

$3.13Ref. price · indicative, final on quote
692121230100 datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

692121230100 Technical Specifications
ParameterValue
SeriesWR-COM
Mounting typeBoard Edge, Cutout; Through Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating0.25A, 1.8A
Positions9
Mounting featureHorizontal, Mid Mount
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Brass
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

Board-edge USB-A with mid-mount retention

The 692121230100 is the 9-contact, shielded USB-A receptacle in Würth Elektronik's WR-COM series, specified for USB 3.2 Gen 1 (Superspeed) data rates. It mounts through-hole right-angle at the board edge with a horizontal mid-mount feature, rated 30 VAC and 0.25 A / 1.8 A per contact, with gold-plated contacts and 5000 mating cycles.

Mounting variants in the WR-COM USB-A line

Within the WR-COM USB-A family the 692121230100's board-edge, mid-mount right-angle orientation sits between the standard horizontal-mount 692121030100 and the reverse-mount 692121130100 — all three share the 9-contact count, USB 3.2 Gen 1 spec, and shielded shell, so the choice depends on the cable exit direction and board cutout geometry.

Frequently asked questions

What compliance documentation does Würth Elektronik provide for 692121230100?

The 692121230100 is ROHS3 Compliant.

Will 692121230100 drop into a panel that was specified around 692121130100 without rewiring?

Both the 692121230100 and the 692121130100 share the same 9-contact count, USB 3.2 Gen 1 specification, and shielded shell. The 692121130100 uses a reverse-mount orientation; the 692121230100 uses a mid-mount orientation. The board cutout and cable exit direction differ — confirm the mounting feature before substituting.
