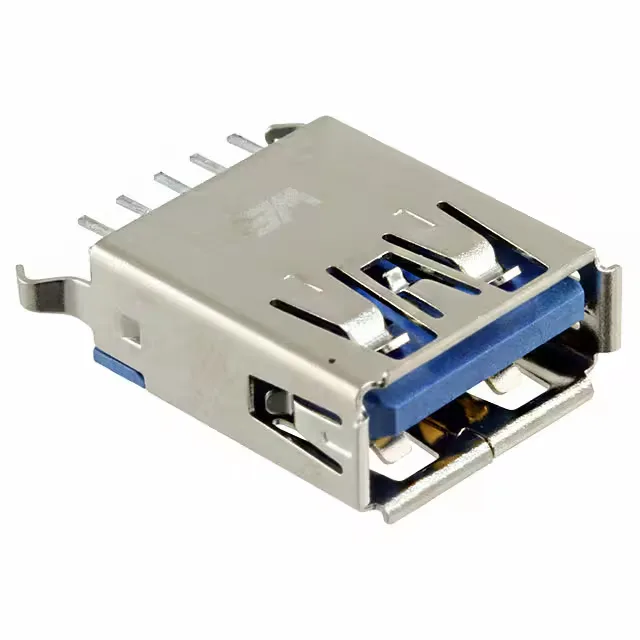

692121430000 — Würth Elektronik product photo
Würth Elektronik

692121430000 Würth WR-COM USB-A Receptacle, 9 Pos

MPN692121430000
Active

Würth Elektronik WR-COM USB-A receptacle, order code 692121430000, 9 contacts, USB 3.2 Gen 1 (5 Gbps), 30 VAC, 0.25 A / 1.8 A, gold contact finish, shielded, through-hole vertical, solder termination.

$4.46Ref. price · indicative, final on quote
692121430000 datasheet
StockIn Stock (22)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

692121430000 Technical Specifications
ParameterValue
SeriesWR-COM
Mounting typeThrough Hole
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating0.25A, 1.8A
Positions9
Mounting featureVertical
Operating temperature-20°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Inox Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

Vertical USB-A, shielded, board lock

The 692121430000 is a 9-contact USB-A receptacle from Würth Elektronik's WR-COM series, supporting USB 3.2 Gen 1 (Superspeed) data rates. Rated 30 VAC with split current rails — 0.25 A on signal contacts and 1.8 A on power contacts. Gold-plated contacts, a shielded Inox Steel shell, and a UL94 V-0 rated blue insulation body.

Board fit: through-hole vertical with board lock

Mounts through-hole vertical with solder termination. A board lock feature secures the connector during reflow and against cable strain. Tray packaging for automated placement.

Mating cycles and temperature range

Rated for 5000 mating cycles — the gold contact finish supports repeated connect-disconnect duty in test equipment or panel-mount applications. Operating temperature spans -20°C to 85°C.

Frequently asked questions

What is the data rate capability of the 692121430000?

USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 / Superspeed USB 3.0) — 5 Gbps signaling rate.

Does the 692121430000 include a board lock?

Yes — a board lock feature is included for retention during soldering and against cable pull forces.

What compliance documentation is available for the 692121430000?

ROHS3 compliant. The UL94 V-0 flammability rating applies to the insulation body.
