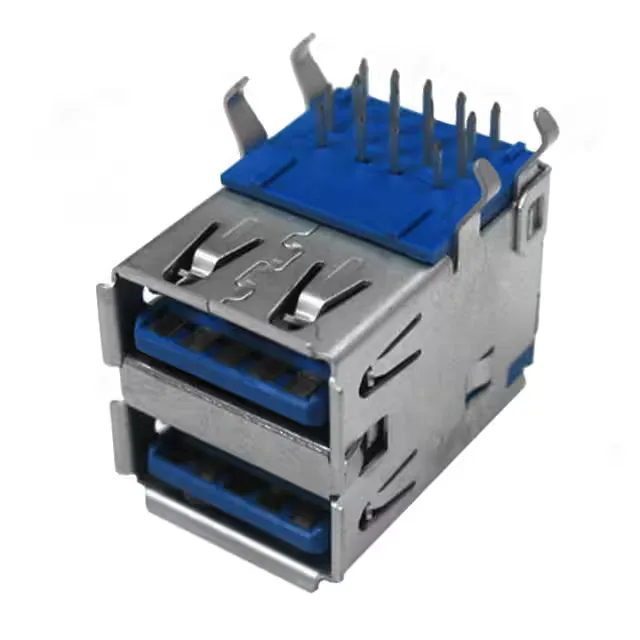

692141030100 — Würth Elektronik product photo
Würth Elektronik

Würth 692141030100 USB 3.2 Stacked Receptacle, 2 Port

MPN692141030100
Active

Würth Elektronik WR-COM USB-A (USB TYPE-A) stacked receptacle, order code 692141030100, 2 ports, 18 contacts, USB 3.2 Gen 1 (Superspeed), shielded, through-hole right-angle, solder termination, gold contact finish, board lock.

$6.09Ref. price · indicative, final on quote
692141030100 datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

692141030100 Technical Specifications
ParameterValue
SeriesWR-COM
Mounting typeThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A), Stacked
Voltage - rated30VAC
Current rating0.25A, 1.8A
Positions18
Mounting featureHorizontal
Operating temperature-40°C ~ 85°C
Insulation colorBlue
Shell (Shielding material)Brass
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports2

Product details

USB 3.2 Gen 1 stacked receptacle, 2 ports

The 692141030100 is the 2-port, 18-contact stacked USB-A receptacle in Würth Elektronik's WR-COM series, supporting USB 3.2 Gen 1 (5 Gbps) signalling. Rated 30 VAC, with a per-port current split of 0.25 A on the signal contacts and 1.8 A on the power contacts, the shielded right-angle through-hole package includes a board lock for reflow retention.

Port count vs single-port siblings

Within the WR-COM USB 3.2 Gen 1 family, the 692141030100's dual-port stacked layout (18 contacts) differs from the single-port 692121030100 (9 contacts, right-angle) and the vertical-mount 692121430000 (9 contacts, vertical).

Frequently asked questions

What compliance documentation is available for 692141030100?

The part is ROHS3 Compliant per.

Will 692141030100 drop into a panel specified for 692221030100?

No — 692221030100 is a single-port USB-B receptacle, not a stacked USB-A. The footprint, port count, and connector type differ.
