Würth Elektronik 692622030100 — USB / HDMI Cable Assemblies

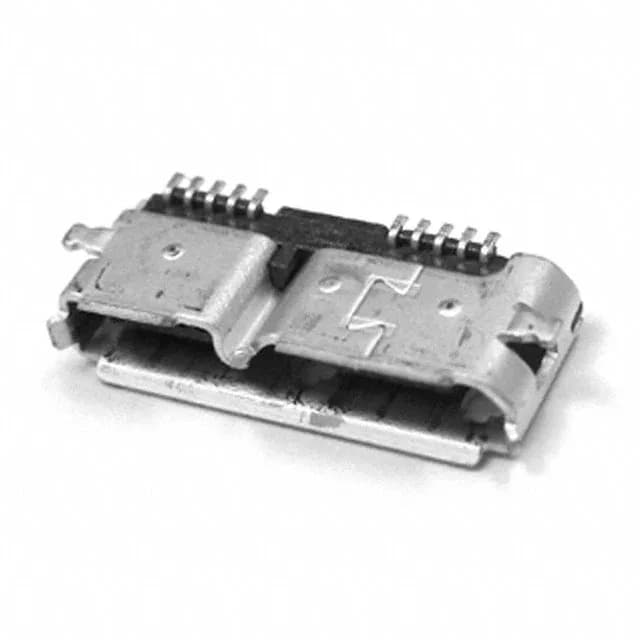

Würth WR-COM 692622030100 USB micro B Receptacle

MPN692622030100
Active

Würth Elektronik WR-COM USB micro B receptacle, order code 692622030100, 10 contacts, USB 3.2 Gen 1 (Superspeed), shielded, gold-plated contacts, surface-mount right-angle, solder termination, 10000 mating cycles.

$3.13Ref. price · indicative, final on quote
Würth Elektronik 692622030100 datasheet (PDF)
RoHSROHS3 Compliant
SeriesWR-COM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

692622030100 key specifications
ParameterValue
SeriesWR-COM
MountingSurface Mount, Right Angle
Connector typeUSB - micro B
Voltage - rated30VAC
Current rating0.25A, 1.8A
Positions10
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

692622030100 additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Number of ports1

Product details

WR-COM micro B receptacle, 10-contact USB 3.2 Gen 1

The 692622030100 is a 10-contact USB micro B receptacle from Würth Elektronik's WR-COM series, supporting USB 3.2 Gen 1 (Superspeed) data rates. Rated 30 VAC with a dual current rating of 0.25 A and 1.8 A, the shielded right-angle SMT connector carries gold-plated contacts rated for 10000 mating cycles.

Positioning within the WR-COM series

The 692622030100 (horizontal, 10 contacts) is the right-angle SMT member of the WR-COM micro B family. The sibling 692622420101 shares the same contact count and USB 3.2 Gen 1 rating but mounts vertically, changing the cable exit direction on the board.

Frequently asked questions

How does the 692622030100 differ from the 692622420101?

Both are 10-contact WR-COM micro B receptacles with USB 3.2 Gen 1 and gold contacts. The 692622030100 mounts horizontally (right-angle SMT), while the 692622420101 mounts vertically — the choice depends on the board's cable exit orientation.
