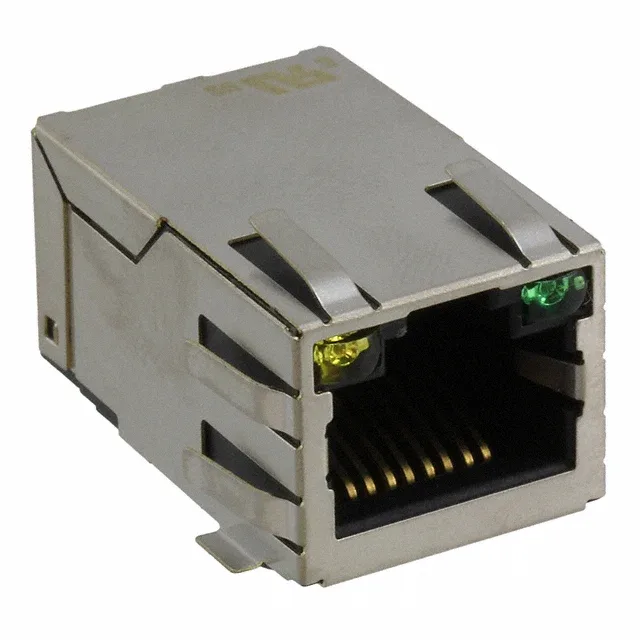

Würth Elektronik 74980111211
MPN74980111211
Active
CONN JACK 1PORT 100 BASE-T SMD
$8.0Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWE-RJ45 LAN
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WE-RJ45 LAN |
| Mounting | Surface Mount |
| Connector type | RJ45 |
| Operating temperature | -40°C ~ 85°C |
| LED color | Yellow - Green |
| Shield material | Copper Alloy |
| Contact material | Tin |
| Housing material | Thermoplastic |
| Height above board | 0.536\" (13.61mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-T, AutoMDIX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of cores per jack | 4 |
