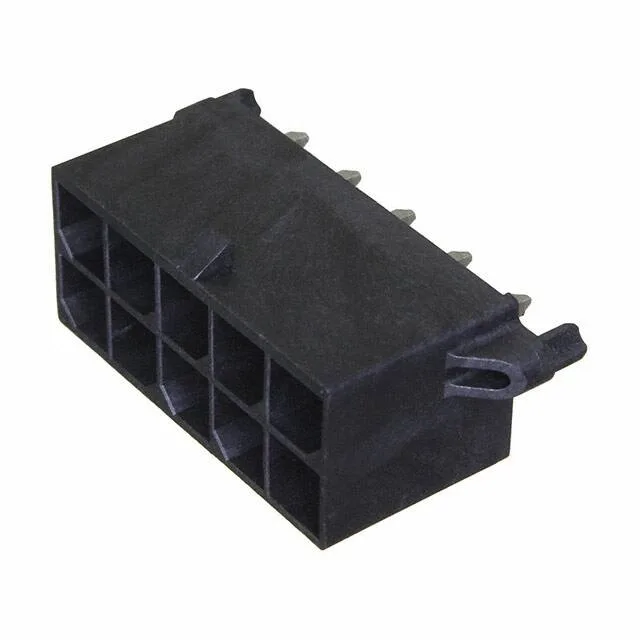

10142708-10200LF — Amphenol product photo
Amphenol

10142708-10200LF Amphenol ICC Minitek Pwr 5.7 Header 10 Pos

MPN10142708-10200LF
Active

Amphenol ICC (FCI) Minitek® Pwr 5.7, 10142708-10200LF, Board to Cable/Wire Header, 10 Positions, 5.70mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Locking Ramp, 600VAC/DC, Tin Contacts, UL94 V-0, Glow Wire Compliant

$2.1500Ref. price · indicative, final on quote
10142708-10200LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10142708-10200LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 5.7
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.583\" (14.80mm)
Insulation materialLiquid Crystal Polymer (LCP), Halogen Free
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Medical, Military, Telecommunications
Contact shapeSquare
Rows2
Pitch0.224\" (5.70mm)
Positions10
Row spacing - mating0.224\" (5.70mm)
Contact finish - postTin
Contact length - post0.147\" (3.73mm)
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

10-Position, 5.70 mm Pitch Power Header

The 10142708-10200LF: Rated 600VAC/DC, the voltage rating suits power distribution in industrial control cabinets, medical equipment, and military telecommunications gear — applications where the header sees steady-state line voltage rather than signal-level switching.

Glow Wire Compliance and Board Guide

The header carries glow wire compliance per IEC 60335-1, a safety certification for appliances and household equipment where a glowing heating element must not ignite the connector. The board guide feature aids automated pick-and-place alignment during PCB assembly, reducing skew on the through-hole solder tails.

Temperature Range and Contact Plating

The 0.147" (3.73 mm) solder post length is compatible with standard through-hole PCB thicknesses (1.6 mm to 2.4 mm) without protruding excessively on the solder side.

Frequently asked questions

What is the mating connector for 10142708-10200LF?

This header mates with a Minitek® Pwr 5.7 receptacle housing that accepts the matching crimp terminals. The 5.70 mm pitch and dual-row layout are shared across the series; the receptacle part number depends on the circuit count and keying option required.
