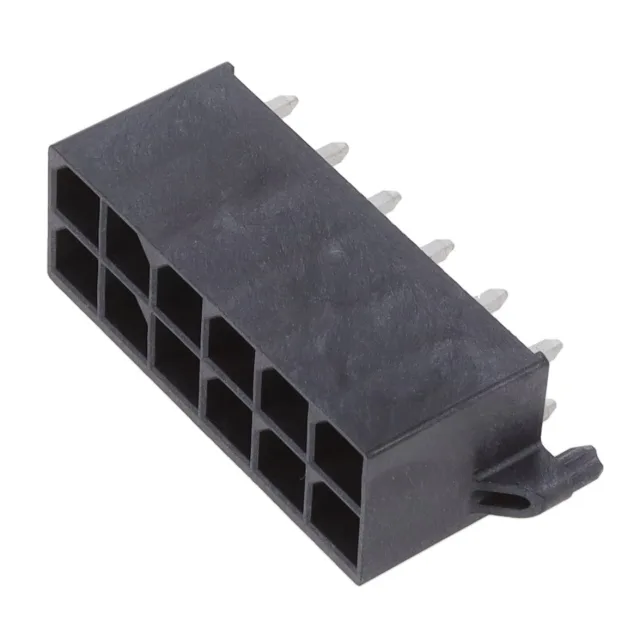

10142708-12000LF — Amphenol product photo
Amphenol

10142708-12000LF Amphenol ICC Minitek Pwr 5.7 Header 12 Pos

MPN10142708-12000LF
Active

Amphenol ICC (FCI) Minitek® Pwr 5.7, Board to Cable/Wire, Header, 12 Positions, 2 Rows, 0.224" (5.70mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Locking Ramp, Gold Mating Contact, 30.0µin (0.76µm), Tin Post, UL94 V-0, -40°C ~ 105°C, Active

$6.6300Ref. price · indicative, final on quote
10142708-12000LF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10142708-12000LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 5.7
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Operating temperature-40°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.583\" (14.80mm)
Insulation materialLiquid Crystal Polymer (LCP), Halogen Free
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Medical, Military, Telecommunications
Contact shapeSquare
Rows2
Pitch0.224\" (5.70mm)
Positions12
Row spacing - mating0.224\" (5.70mm)
Contact finish - postTin
Contact length - post0.147\" (3.73mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

5.70 mm Pitch and 12 Circuits — Board Footprint and Current Ceiling

The 10142708-12000LF: With 12 positions loaded across 2 rows, this header handles moderate power distribution in a compact footprint — the 5.70 mm spacing keeps routing clearances manageable while supporting the current rating typical of this series.

30 µinch Gold Mating Face — Field-Service Grade

The tin post is standard for solder joint reliability.

Glow Wire Compliant and Halogen-Free Housing

The liquid crystal polymer (LCP) housing is halogen-free and rated UL94 V-0. Glow wire compliance (per IEC 60695-2-11) is listed — this matters for appliance and lighting applications where the connector must self-extinguish under fault conditions without propagating flame.

Frequently asked questions

Does 10142708-12000LF have a locking ramp?

Yes — the fastening type is a locking ramp, which provides positive retention against vibration and prevents accidental unmating.

What is the pitch and position count for 10142708-12000LF?

The mating pitch is 0.224" (5.70 mm) with a row spacing of the same dimension. It has 12 positions across 2 rows, all loaded.
