Product Introduction

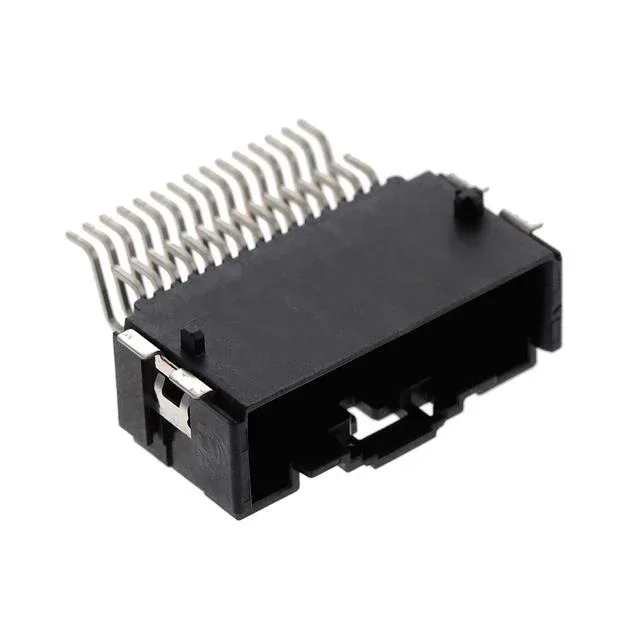

The Amphenol 10145030-130KLF is a 30-circuit, dual-row header in the Minitek MicroSpace™ 1.27mm series, designed for board-to-cable/wire interconnects. It carries a 1.27mm pitch on the mating interface, with a row spacing of 2.06mm, and is rated for 4A per contact at 48V. Typical applications span automotive, general purpose, and industrial environments, supported by a -40°C to 130°C operating range and a UL94 V-0 thermoplastic housing.
Key Features and Ratings
The 1.27mm pitch is the tightest in the Minitek MicroSpace family — it drives the board footprint and limits routing density, so confirm the PCB layout can accommodate the 2.06mm row spacing before committing. The mating contact finish is 118.1µin (3.00µm) of tin — a heavy-duty plating that handles moderate mating cycles in cost-sensitive, non-corrosive environments.
