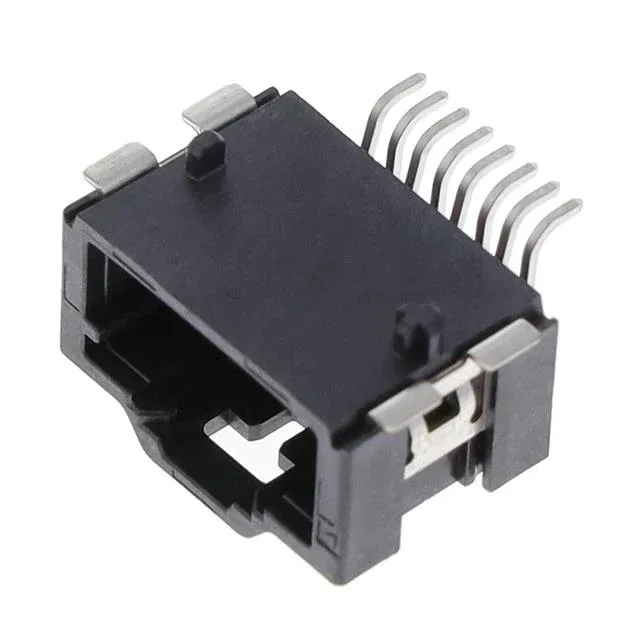

Amphenol Minitek MicroSpaceXS™ 1.27mm header, 10155500-A308KLF, 8 circuits, 2 rows, 0.100" (2.54mm) pitch, 4A, 48V, surface mount right-angle, 30.0µin gold plating, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Minitek MicroSpaceXS™ 1.27mm |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 48V |
| Current rating | 4A |
| Operating temperature | -40°C~130°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.382\" (9.70mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.096\" (2.43mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
It carries a 0.100" (2.54mm) mating pitch with a 0.096" (2.43mm) row spacing, rated 4A per circuit at 48V. The 30.0µin (0.76µm) gold plating on the mating contact surface supports repeated mating cycles in corrosive or field-service environments — the gold thickness here is well above the 15µin threshold typically specified for automotive and industrial duty.
The 10155500-A208KLF is the same 8-position, dual-row, SMT right-angle header but with tin plating on the mating surface instead of 30.0µin gold. Choose the gold variant for higher mating cycle requirements; choose the tin variant for lower-cycle, cost-sensitive builds.
Yes, it carries a ROHS3 compliance status.
