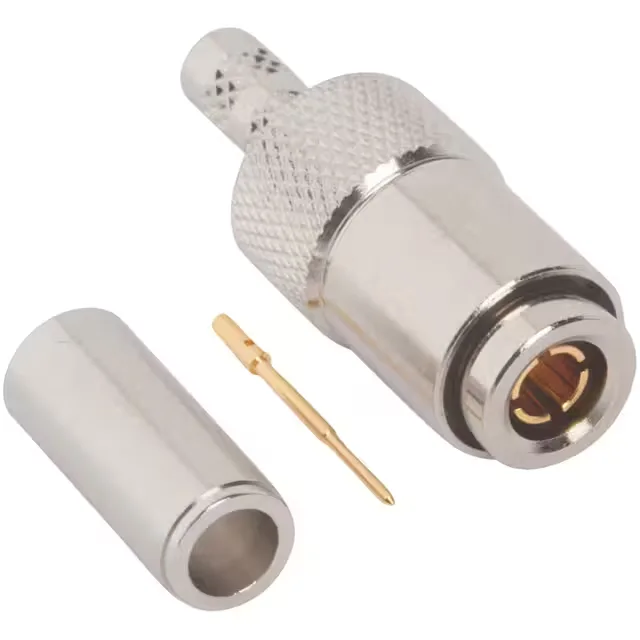

102-799-7535 — Amphenol product photo
Amphenol

Amphenol 102-799-7535 1.0/2.3 Plug, 75 Ohm, 2 GHz

MPN102-799-7535
Active

Amphenol 1.0/2.3 connector, Plug, Male Pin, 75 Ohm, 2 GHz, 500 Mating Cycles, Push-Pull, Crimp Shield, Solder Contact, Nickel Body, Gold Center Contact, -40°C~155°C.

$11.5000Ref. price · indicative, final on quote
102-799-7535 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

102-799-7535 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector type1.0/2.3
Fastening typePush-Pull
Voltage rating250 V
Frequency - max2 GHz
Cable groupAT&T 735, 735A, Belden 735A1
Operating temperature-40°C~155°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance75Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The Amphenol 102-799-7535 is a 1.0/2.3 series plug, male pin, designed for 75 Ohm coaxial cable systems. Its defining characteristic is the 75 Ohm impedance — this is not a standard 50 Ohm RF connector, but a specialized interface for video, broadband, and telecommunications signal paths where 75 Ohm is the line impedance. The connector is rated to 2 GHz maximum frequency, which covers the full bandwidth of digital video (SDI up to 3G-SDI falls within this range) and broadband data distribution.

Cable Group and Termination Details

This plug is specifically designed for cable groups AT&T 735, 735A, and Belden 735A1 — a 75 Ohm, dual-shielded coaxial cable commonly used in broadcast and telecom infrastructure. The shield termination is crimp, and the center contact is solder, which together produce a reliable, low-impedance transition from cable to connector.

Frequently asked questions

Where can I buy 102-799-7535 available via RFQ confirmation?

The 102-799-7535 is an active-production part available through independent distribution. Submit an RFQ for your target quantity and delivery window.

What is the impedance of 102-799-7535?

The 102-799-7535 is a 75 Ohm connector, not the more common 50 Ohm. This impedance is matched to video and broadband coaxial cable systems (AT&T 735, 735A, Belden 735A1).

Is 102-799-7535 a push-pull or bayonet connector?

It is a push-pull connector. The fastening type is push-pull, meaning it mates and unmates with a straight axial push and pull — no bayonet lock ring or threaded coupling.
