RP-BNC Jack, 50 Ohm, 4 GHz — Kit for RG-174/188A/316
The 112160RP: This is a complete termination kit: the package includes the connector body, one crimp-on contact, one ferrule, and one sleeve — four pieces total, ready for field or bench assembly. The connector is built for RG-174, RG-188A, and RG-316 coaxial cables — 50 Ohm coax types for flexible RF interconnects. The gold-plated brass body and gold centre contact resist corrosion in outdoor or industrial environments.
50 Ohm, 4 GHz — RF Performance and Signal Path
The reverse-polarity interface (male pin in the jack, female socket in the plug) is common in Wi-Fi access points and other equipment where the standard BNC gender convention is swapped to prevent accidental mating with standard BNC cables. The beryllium copper centre contact maintains spring force through thermal cycling, keeping contact resistance low over the 500-cycle life.
Kit Contents and Cable Prep

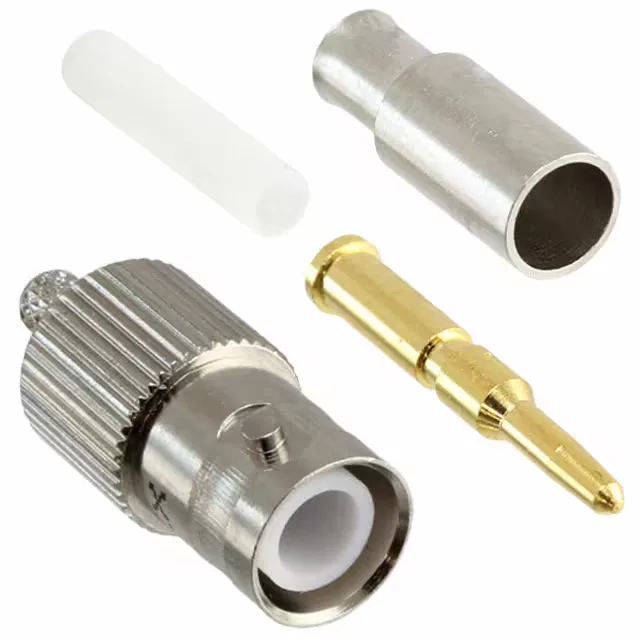

The 112160RP ships as a four-piece kit: one RP-BNC jack body, one centre contact (male pin), one crimp ferrule, and one sleeve. This is not a bare connector — the contact and ferrule are matched to the connector body and the RG-174/188A/316 cable group. The gold plating on both the body and the centre contact gives a corrosion-resistant RF path.
