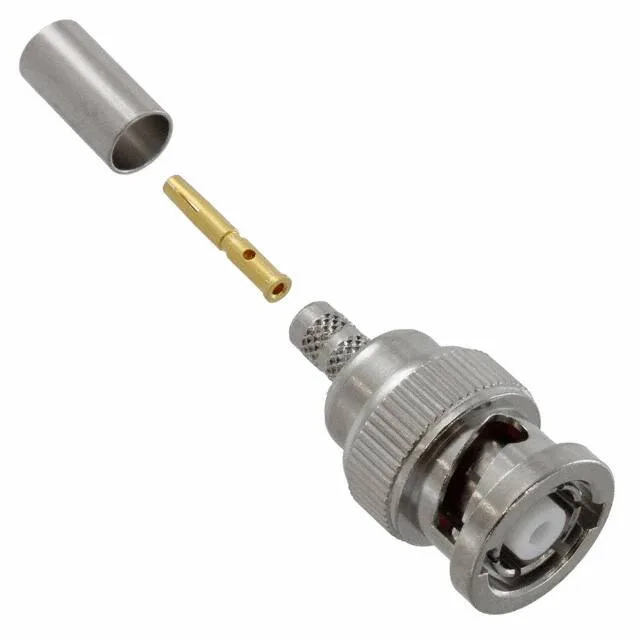

112514RP — Amphenol product photo
Amphenol

Amphenol RF 112514RP RP-BNC Plug, 50 Ohm, 4 GHz, Crimp

MPN112514RP
Active

Amphenol RF RP-BNC plug, 112514RP, 50 Ohm, 4 GHz, female socket, crimp termination, RG-55/142/223/400, 500 mating cycles, -65°C to 165°C, Bulk.

$6.1100Ref. price · indicative, final on quote
112514RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

112514RP Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

Why the polarity swap matters for your RF line

The Amphenol RF 112514RP is a reverse-polarity BNC (RP-BNC) plug with a female center socket, intended for applications where standard BNC polarity is deliberately avoided — common in wireless infrastructure, ISM-band radios, and certain Wi-Fi access points where the equipment maker wants to prevent accidental mating with a standard BNC antenna.

Cable prep and crimp fit

This plug is designed for RG-55, RG-142, RG-223, and RG-400 coax — the crimp ferrule and center contact are sized to those specific cable dielectrics and braid diameters.

Frequently asked questions

What cable groups are compatible with 112514RP?

The 112514RP is designed for RG-55, RG-142, RG-223, and RG-400 coaxial cables. Using a different cable group will change the impedance and may compromise the crimp retention.

Is 112514RP a male or female connector?

The 112514RP is a reverse-polarity BNC plug with a female center socket. It mates with a standard RP-BNC jack (which has a male center pin).
