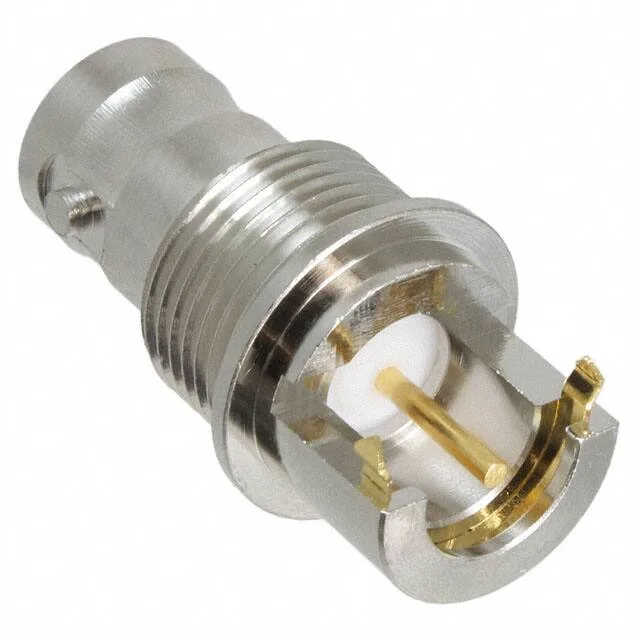

112775-75 — Amphenol product photo
Amphenol

Amphenol 112775-75 BNC Jack, 75 Ohm, 3 GHz, 500 Cycles

MPN112775-75
Active

Amphenol RF BNC jack, female socket, 75 Ohm, 3 GHz max, 500 mating cycles, solder termination, bulkhead front-side nut mount, bulk package.

$11.3800Ref. price · indicative, final on quote
112775-75 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

112775-75 Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch; Panel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max3 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesBoard Guide
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 112775-75: The 75 Ohm impedance targets video, broadcast, and data-com applications where the system characteristic impedance is 75 Ohm — think SDI video routers, CATV headends, or precision instrumentation. The bayonet lock mates fast and holds under vibration, and the bulkhead front-side nut mount lets you fix the jack to a panel before terminating the solder connection. The board-edge, end-launch mounting option also allows direct PCB integration without a pigtail.

Sizing the RF Path: Impedance, Frequency, and Insertion Loss

The 75 Ohm impedance and 0.2 dB insertion loss are specified for 3 GHz max. The PTFE dielectric and BNC geometry define the upper frequency limit.

Two mounting paths: board-edge end-launch for direct PCB solder, or bulkhead front-side nut mount for panel fixing. The shield termination is solder, so you'll need a soldering iron and a clean ground pad — no crimp or clamp.

Frequently asked questions

What is the impedance of 112775-75?

The impedance is 75 Ohm, designed for video, broadcast, and data-com systems that use a 75 Ohm characteristic impedance.
