112806-75 BNC Jack, 75 Ohm, 4 GHz, Gold, Bulkhead

MPN112806-75
Active

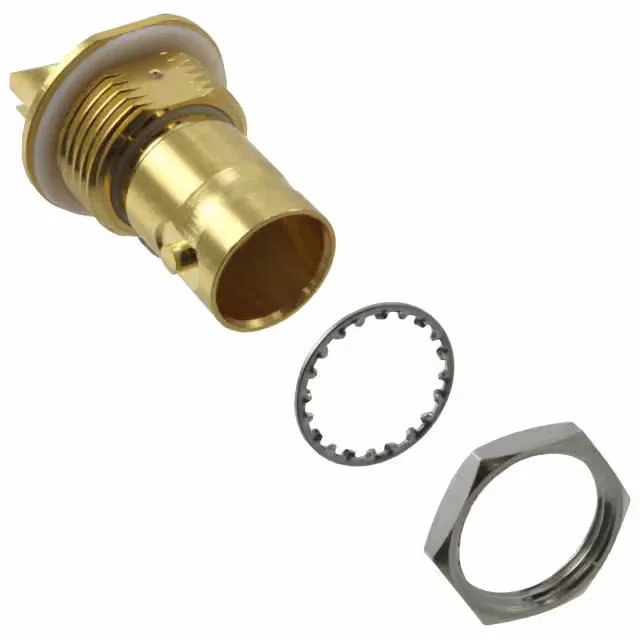

Amphenol BNC jack, 75 Ohm, 4 GHz, 500 V, gold body, bayonet lock, bulkhead front-side nut, includes lockwasher and nut, solder termination.

$13.7100Ref. price · indicative, final on quote
112806-75 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

112806-75 Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch; Panel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
FeaturesIsolated
Includes3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Impedance75Ohm
Body finishGold
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 112806-75: At 75 Ohm it's the standard for composite video, SDI, and CCTV — not the 50 Ohm RF you'd find on a spectrum analyzer.

Fit and Mounting — Board Edge, End Launch, or Bulkhead

This jack mounts either at the board edge with an end-launch footprint or through a panel with the front-side nut — the kit includes the connector, a lockwasher, and the nut, so you're not hunting for hardware. The shield termination is solder, same as the centre contact, so you'll need an iron on site. The bayonet lock is quick to mate and unmate, and the 75 Ohm impedance is baked into the PTFE dielectric — no tuning, no guesswork.

What's the Difference Between 112806-75 and 112806-50?

The 112806-75 is the 75 Ohm variant; the 112806-50 is its 50 Ohm sibling. Same BNC interface, same gold body, same bayonet lock — the impedance is the only spec that changes.

Frequently asked questions

What is the impedance of 112806-75?

That's the impedance for video, broadcast, and CCTV — not the 50 Ohm used for RF test equipment.

Does 112806-75 come with mounting hardware?

Yes, the package includes the connector, a lockwasher, and a nut — three pieces total. No separate hardware order needed for a bulkhead install.
