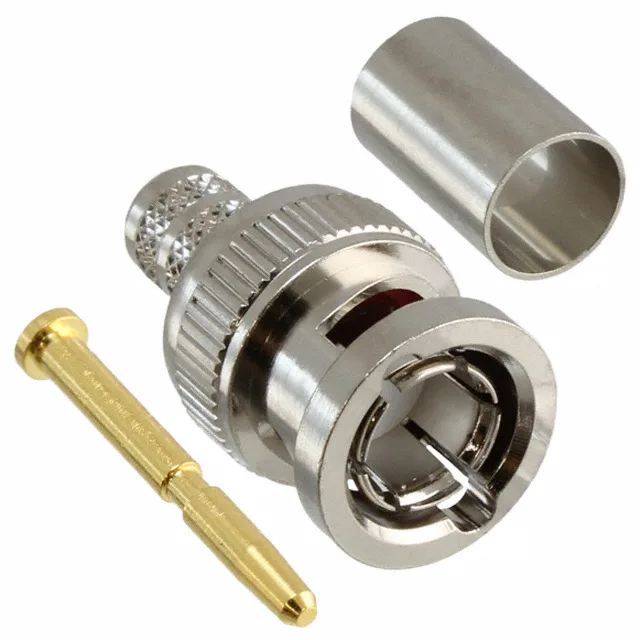

112957-11 — Amphenol product photo
Amphenol

Amphenol RF 112957-11 BNC Plug, 75 Ohm, RG-6, 6 GHz

MPN112957-11
Active

Amphenol RF BNC plug, 75 Ohm, crimp termination, RG-6 double braid / Belden 1694A, gold centre contact, 500 mating cycles, 6 GHz max, free-hanging in-line.

$5.9600Ref. price · indicative, final on quote
112957-11 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

112957-11 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max6 GHz
Cable groupRG-6 Double Braid, Belden 1694A
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 112957-11: This is the 75 Ohm variant of the standard BNC interface — not the common 50 Ohm type — so it is the correct choice for video distribution, HD-SDI broadcast, and precision instrumentation where the impedance match matters.

Cable Prep and Termination

Cable group is RG-6 double braid and Belden 1694A — the ferrule and centre contact dimensions are matched to these cable diameters.

Signal Path and Frequency Range

Rated to 6 GHz with 0.2 dB insertion loss. The 75 Ohm impedance and PTFE dielectric keep the signal path stable across the band.

Temperature and Environment

Frequently asked questions

What cable types work with 112957-11?

RG-6 double braid and Belden 1694A. The included ferrule and centre contact are sized for these cable constructions. For RG-6 quad shield, verify the cable outer diameter against the ferrule before committing.

What is the mating cycles rating of 112957-11?

500 mating cycles. The gold-plated centre contact supports this cycle life — suitable for field-service patch panels where reconnections are occasional, not daily.
