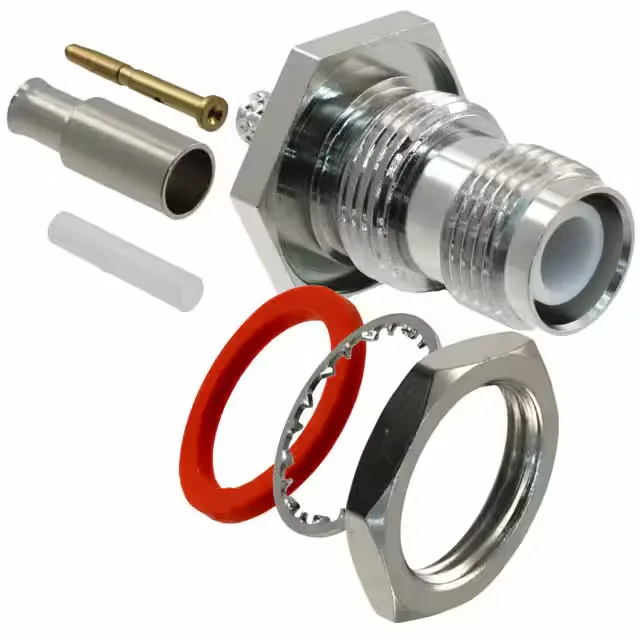

122192RP — Amphenol product photo
Amphenol

Amphenol RF 122192RP RP-TNC Jack, 11 GHz, 500 V, Bulkhead

MPN122192RP
Active

Amphenol RF RP-TNC jack, male pin, bulkhead front-side nut mount, 50 Ohm, 11 GHz, 500 V, crimp termination, gold centre contact, 8-piece kit.

$8.6200Ref. price · indicative, final on quote
122192RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

122192RP Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max11 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut, 1 Sleeve
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.18dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

RP-TNC Bulkhead Jack for WLAN and Instrumentation Coax

The Amphenol RF 122192RP is a reverse-polarity TNC (RP-TNC) jack with a male centre pin, designed for bulkhead front-side nut panel mounting. The connector is rated to 11 GHz with a 50 Ohm impedance.

Cable Groups and Termination Hardware

The 122192RP terminates to RG-174, RG-188A, RG-316, LMR-100, and M17/119-RG174 — the most common small-diameter flexible coax cables used in WLAN pigtails and test leads. The 8-piece kit includes the connector body, centre contact, ferrule, gasket, insulator, lockwasher, nut, and sleeve, so a single order code covers all the hardware needed for one cable end.

The threaded fastening and bulkhead front-side nut mounting provide a vibration-resistant panel installation. The connector is not rated as waterproof — the gasket in the kit provides environmental sealing at the panel face, but the cable entry is not sealed.

Frequently asked questions

What cable types does the 122192RP work with?

The 122192RP terminates to RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 coax cables.

Does the 122192RP include all necessary components for installation?

Yes, the 122192RP ships as an 8-piece kit containing the connector body, centre contact, ferrule, gasket, insulator, lockwasher, nut, and sleeve — everything needed for one cable termination.
