Amphenol RF RP-TNC plug, female socket, 50 Ohm, 11 GHz, 0.18 dB insertion loss, crimp termination, for RG-8/213/214 cable, 500 mating cycles, bulk pack.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Frequency - max | 11 GHz |
| Cable group | RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.18dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |

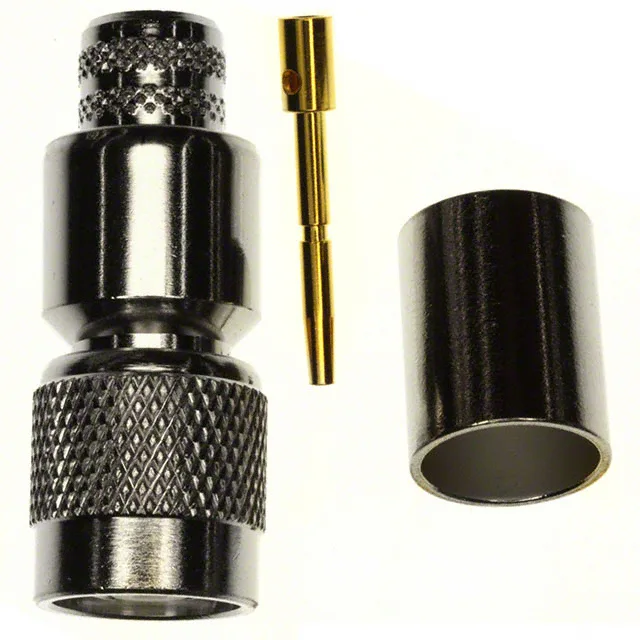

It ships as a 3-piece kit — the connector body, the crimp contact, and the ferrule — so you can terminate it on site with a standard crimp tool.
This plug accepts RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 cable groups — the common 0.405-inch-diameter coax family used in base-station and antenna feeds.
The 0.18 dB insertion loss is specified at 11 GHz.
It is a plug with a female socket centre contact — the RP-TNC style reverses the gender of the standard TNC interface, so the plug body carries the female centre pin.
It accepts RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 — the 0.405-inch-diameter coax family.
The specified insertion loss is 0.18 dB, measured at the connector's rated frequency range up to 11 GHz.
