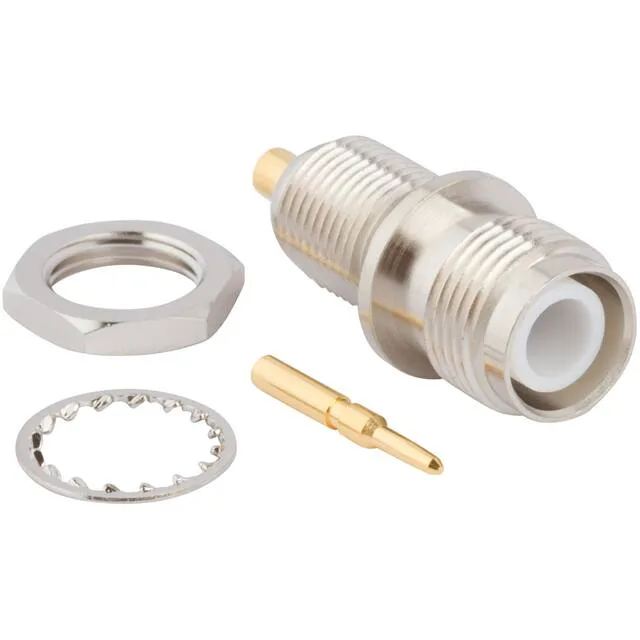

122463RP-50 — Amphenol product photo
Amphenol

122463RP-50 RP-TNC Jack, 50 Ohm, 11 GHz, Bulkhead Mount

MPN122463RP-50
Active

Amphenol RF 122463RP-50 RP-TNC jack, male pin, 50 Ohm, 11 GHz, bulkhead rear-side nut mount, solder shield and contact, for RG-405 (.085/.086) semi-rigid cable, includes hardware kit.

$13.3774Ref. price · indicative, final on quote
122463RP-50 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

122463RP-50 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeThreaded
Frequency - max11 GHz
Mounting featureBulkhead - Rear Side Nut
Cable groupRG-405 (.085\", .086\" Semi Rigid)
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

RP-TNC Bulkhead Jack for RG-405 Semi-Rigid Cable

The Amphenol RF 122463RP-50 is an RP-TNC jack (male pin) designed for panel-mount bulkhead installations using RG-405 (.085" or.086" diameter) semi-rigid coaxial cable. It is a reverse-polarity TNC connector, meaning the gender of the center contact is reversed compared to a standard TNC — the jack has a male pin instead of a female socket. This connector is rated for 50 Ohm impedance and operates up to 11 GHz, with a PTFE dielectric and gold-plated brass center contact for consistent RF performance across the band. The nickel-plated brass body and threaded coupling provide a secure, vibration-resistant connection.

This connector is specifically intended for RG-405 (.085" /.086" diameter) semi-rigid cable. Both the shield and the center contact are terminated by soldering — there is no crimp option. The kit supplies the separate contact and insulator, so the assembly requires a soldering step for each termination. The threaded coupling mates with any standard RP-TNC female jack or bulkhead receptacle.

Environmental and Mechanical Ratings

The nickel body finish provides corrosion resistance in humid or industrial environments.

Frequently asked questions

Can 122463RP-50 be used with RG-405 cable?

Yes, the 122463RP-50 is designed for RG-405 (.085" or.086" diameter) semi-rigid cable. Both the shield and center contact are solder-terminated.
