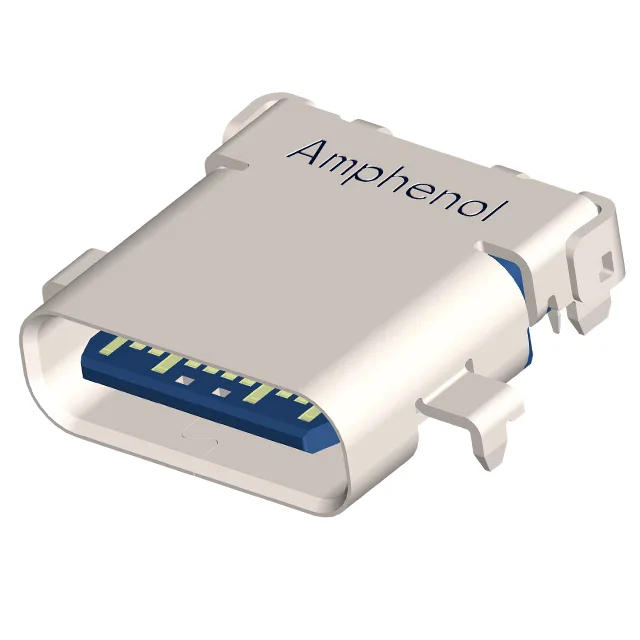

Amphenol ICC (Commercial Products) USB-C (USB TYPE-C) receptacle, order code 12401698E4#2A, 24 contacts, single port, USB 3.2 Gen 2, 5 A, gold contact finish, board edge cutout surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Mounting type | Board Edge, Cutout; Surface Mount, Right Angle |
| Connector type | USB-C (USB TYPE-C) |
| Current rating | 5A |
| Positions | 24 |
| Mounting feature | Horizontal, Mid Mount |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Termination | Solder |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The 12401698E4#2A is the 24-contact USB-C receptacle in Amphenol ICC's USB, Type-C & HDMI Connectors line. Rated 5 A per port with gold-plated contacts, it supports USB 3.2 Gen 2 signaling and mounts horizontally to the board edge via surface-mount right-angle solder tails.
It is a USB-C receptacle (female) with board edge cutout, surface-mount right-angle termination.
The connector is specified for USB 3.2 Gen 2 (Superspeed+), supporting 10 Gbps signaling.
