Cable fit and what ships in the bag
The 132101RP: This connector fits RG-405 (.085" and.086" semi-rigid) cable.
The gold-on-gold contact interface (gold center contact, gold body finish) keeps contact resistance stable over 500 cycles.
Amphenol 132101RP RP-SMA Plug, 18 GHz, 50 Ohm, for RG-405
MPN132101RP
Active
Amphenol RF RP-SMA plug, female socket, 50 Ohm, 18 GHz, gold-plated brass body, solder termination, for RG-405.085/.086 semi-rigid cable, 500 mating cycles.
$7.7300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 375 V |
| Frequency - max | 18 GHz |
| Cable group | RG-405 (.085\", .086\" Semi Rigid) |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|

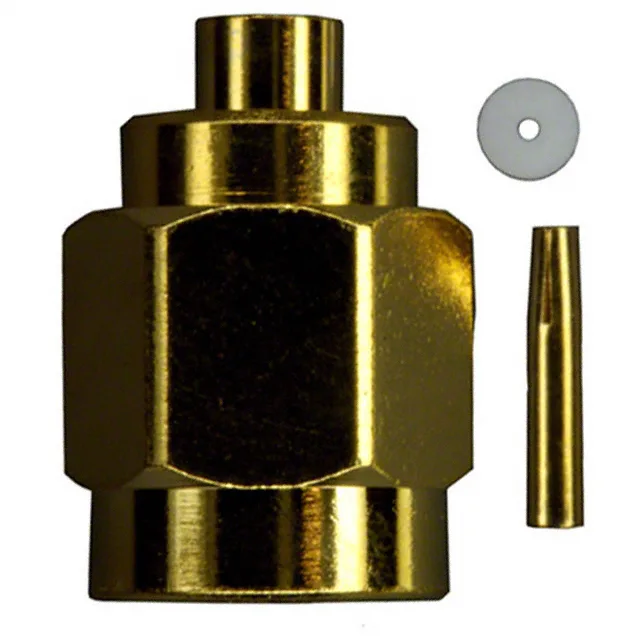

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Insulator |
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
What cable does the 132101RP connector fit?
It fits RG-405 semi-rigid cable in the.085" and.086" diameters — the standard 0.085-inch coax used up to 18 GHz.
How many mating cycles does 132101RP have?
500 mating cycles, supported by gold-on-gold contact plating that resists wear through repeated connect-disconnect cycles.
