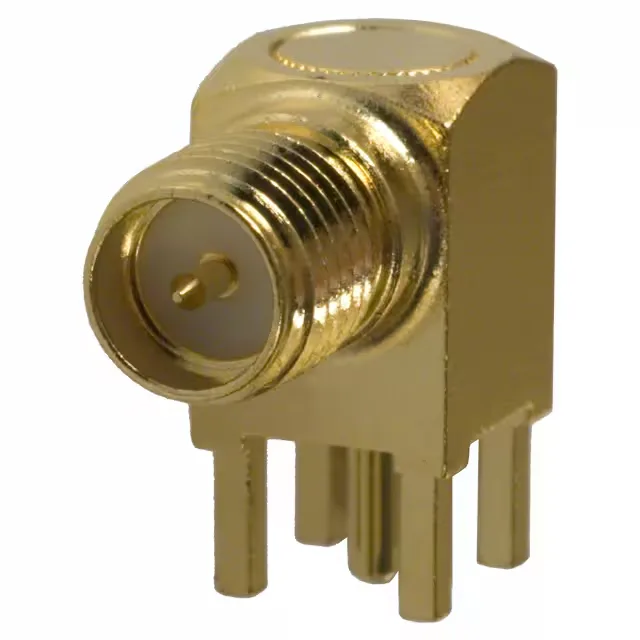

Amphenol RF 132136RP RP-SMA Jack, 50 Ohm, Right-Angle

MPN132136RP
Active

Amphenol RF RP-SMA receptacle, male pin, 50 Ohm, through-hole right-angle, gold body, 500 mating cycles, 375 V, solder termination.

$11.2700Ref. price · indicative, final on quote
132136RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132136RP Technical Specifications
ParameterValue
Mounting typeThrough Hole, Right Angle
Connector typeReceptacle, Male Pin
Fastening typeThreaded
Voltage rating375 V
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

50 Ohm RP-SMA Jack for Board-Edge RF Launch

The 132136RP: It is specified for 50 Ohm impedance, the standard for RF signal paths in Wi-Fi access points, antenna modules, test equipment, and radio front-ends. The threaded coupling (fastening type) provides a vibration-resistant, torque-able connection that holds the pair mated under cable strain.

375 V Rating and Wide Temperature Range

The 375 V voltage rating gives headroom for RF power applications where the signal rides on a DC bias or where the connector is used in a low-power RF path with high peak voltages.

The shield termination is solder — the outer conductor of the coaxial cable solders to the ground plane or cable braid through the connector body. The centre contact is also solder-terminated. The dielectric material is PTFE (Teflon), which maintains a stable dielectric constant across the temperature range and supports the 50 Ohm impedance target. The threaded coupling ensures a secure mate; hand-tighten to the torque spec in the product drawing. Do not use standard SMA jacks as a mating half — the centre pin polarity is reversed.

Frequently asked questions

What is the impedance of 132136RP?

The 132136RP is a 50 Ohm RP-SMA receptacle. This is the standard impedance for most RF signal paths — Wi-Fi, cellular, GPS, and test equipment all use 50 Ohm as the reference.

How many mating cycles does 132136RP have?

The gold-plated centre contact and gold body finish keep contact resistance low across repeated connects, making it suitable for field-service and test applications.

Is 132136RP compatible with SMA connectors?

Yes, but with a polarity note. The 132136RP is an RP-SMA (reverse-polarity SMA) receptacle with a male centre pin. It mates with a standard SMA plug that has a female centre socket. It does not mate with a standard SMA jack (which also has a female centre socket).
