RP-SMA Bulkhead Jack for RG-316, 50 Ohm to 12.4 GHz

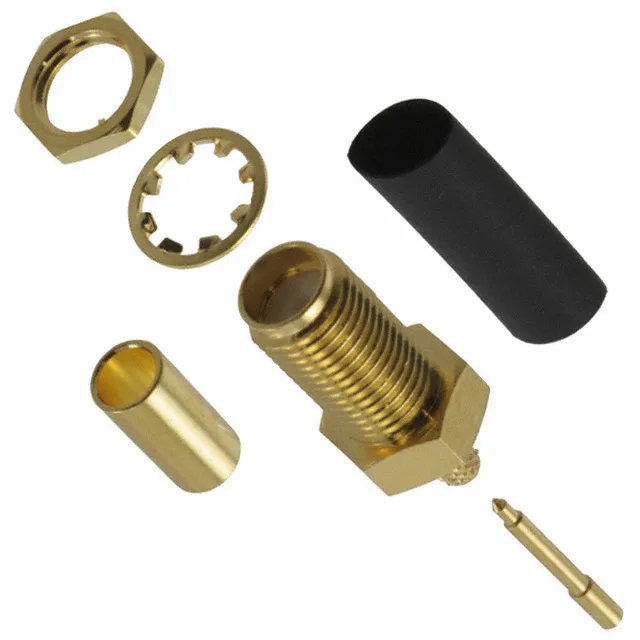

It ships as a complete 6-piece kit: one connector, one contact, one ferrule, one heat shrink tube, one lockwasher, and one nut — everything needed for a single termination in one order code. Threaded coupling and a weatherproof bulkhead seal make this connector suitable for outdoor enclosures, antenna panels, and any location where moisture ingress is a concern. The gold-plated brass body and gold centre contact plating support 500 mating cycles.
Cable Prep and Termination — RG-316 Double Braid
This jack is factory-tuned for RG-316 double-braid coax. The centre contact is solder-terminated; the shield is crimped using the included ferrule. The heat shrink tube slides over the crimp area to seal the termination and add strain relief. The kit approach means you do not have to source a separate ferrule or nut — the BOM line is one part number.
Mounting and Sealing — Bulkhead Front-Side Nut
The lockwasher prevents the nut from backing off under vibration. The weatherproof rating means an O-ring or gasket seals the panel interface; no additional potting or gasketing is required for outdoor use.
