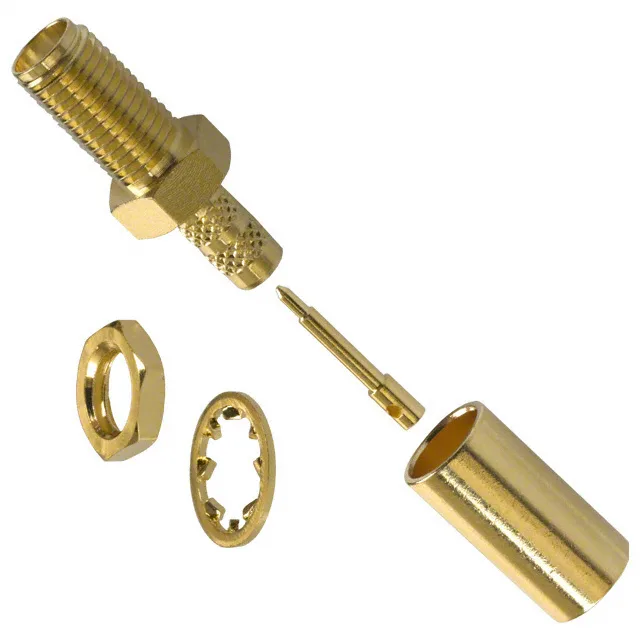

132191RP — Amphenol product photo
Amphenol

Amphenol RF 132191RP RP-SMA Jack, 50 Ohm, 12.4 GHz

MPN132191RP
Active

Amphenol RF RP-SMA bulkhead jack, male pin, 50 Ohm, 12.4 GHz, gold brass body, crimp shield termination, solder contact, panel mount, Bulk.

$11.5847Ref. price · indicative, final on quote
132191RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132191RP Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max12.4 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Impedance50Ohm
Body finishGold
Mating cycles500
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

The 132191RP: The RP-SMA variant swaps the gender of the centre contact — the jack carries the male pin, so it mates with an RP-SMA plug that has a female socket. This polarity reversal is common in WiFi and ISM-band equipment where standard SMA is reserved for the antenna side. The jack is panel-mounted with a front-side nut and bulkhead flange, accepting RG-55, 142, 223, and 400 cables via a crimp shield termination and solder centre contact.

Cable and termination — what the kit includes

The shield is crimped, the centre pin is soldered. The listed cable group — RG-55, 142, 223, 400 — covers the common semi-rigid and flexible coax sizes used in RF test, antenna feeds, and microwave interconnects.

What the 12.4 GHz and 500 V ratings mean for the application

The 12.4 GHz maximum frequency covers the full X-band and the lower Ku-band.

Frequently asked questions

What cable types are compatible with the 132191RP?

The 132191RP is designed for RG-55, 142, 223, and 400 cables. The shield is crimped and the centre contact is soldered.

Is the 132191RP gold plated?

The gold plating supports the 500 mating cycle rating.
