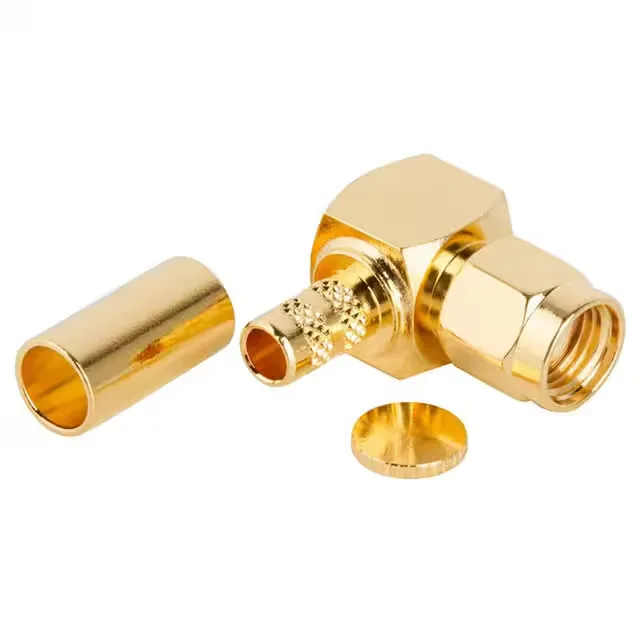

132235RP — Amphenol product photo
Amphenol

132235RP RP-SMA Plug Kit, 50 Ohm, 12.4 GHz, Gold Body

MPN132235RP
Active

Amphenol RF 132235RP RP-SMA plug kit, 50 Ohm, 12.4 GHz, gold body, includes connector + end cap + ferrule, crimp/solder termination, free-hanging right-angle.

$10.5900Ref. price · indicative, final on quote
132235RP datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132235RP Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Female Socket
Fastening typeThreaded
Voltage rating375 V
Frequency - max12.4 GHz
Cable groupBelden 7807A, LMR-200
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RP-SMA Plug Kit for LMR-200 and Belden 7807A

The Amphenol RF 132235RP is an RP-SMA plug kit — a reverse-polarity SMA connector that mates with standard RP-SMA jacks. It is pre-qualified for Belden 7807A and LMR-200 cables, which means the crimp dimensions and dielectric fit are verified for those cable types out of the box. 50 Ohm impedance, 12.4 GHz max frequency.

Cable Prep and Termination Sequence

Termination is a two-step process: the centre contact solders to the cable centre conductor, and the shield crimps through the ferrule.

Mating Cycles and Contact Reliability

That cycle life suits field-serviceable connections — antenna ports, test points, or equipment that gets swapped during maintenance — where the connector sees regular reconnection. The threaded coupling nut provides positive retention under vibration, and the 375 V rating covers the voltage levels typical of RF power amplifiers and radio transceivers.

Frequently asked questions

What cable is compatible with 132235RP?

The 132235RP is pre-qualified for Belden 7807A and LMR-200 cables. The crimp ferrule and dielectric fit are dimensioned for those specific cable types.

What is the difference between 132235RP and a standard SMA plug?

The 132235RP is an RP-SMA (reverse polarity) plug. The centre contact is a female socket rather than a male pin, which means it mates with an RP-SMA jack that has a male centre pin — not with a standard SMA jack. The threads and body dimensions are otherwise the same.
