132255-12N Amphenol RF SMA Receptacle, 50 Ohm, 18 GHz

MPN132255-12N
Active

Amphenol RF SMA receptacle, 132255-12N, 50 Ohm, 18 GHz, 1 port, board edge end launch, solder termination, gold center contact, 500 mating cycles, bulk.

$11.4100Ref. price · indicative, final on quote
132255-12N datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

132255-12N Technical Specifications
ParameterValue
Mounting typeBoard Edge, End Launch
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Frequency - max18 GHz
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

RF launch for the board edge

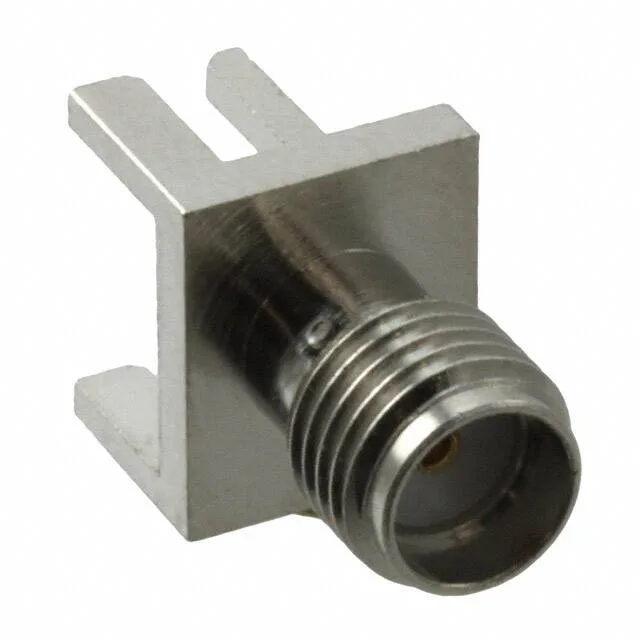

The 132255-12N is an Amphenol RF SMA receptacle, a 50 Ohm end-launch jack meant for board-edge mounting. It carries a single port with a threaded coupling, gold-plated beryllium copper centre contact, and a PTFE dielectric. The body is machined brass with nickel finish. Rated to 18 GHz, this connector is designed for RF signal paths where the board trace transitions to a coaxial cable at the PCB perimeter. The 500 mating cycles rating means it can handle repeated connect-disconnect duty in test setups or field-service applications where the cable gets swapped regularly.

This is an SMA female receptacle (jack) with a threaded coupling. It mates with any standard SMA male plug (pin contact) that has the same 1/4-36 UNS thread and 50 Ohm interface per IEC 60169-15. The gold-on-gold contact interface supports the 500-cycle life.
